ANSEL COMMUNICATIONS, INC.
NC2000 REV. D
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8/16-bit ISA |
|
Topology |
Star Linear bus |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |
JB1 | |
| » |
Unshielded twisted pair |
Setting 1 |
|
RG-58A/U 50ohm coaxial |
Setting 2 | |
|
AUI transceiver via DB-15 port |
Setting 3 | |
|

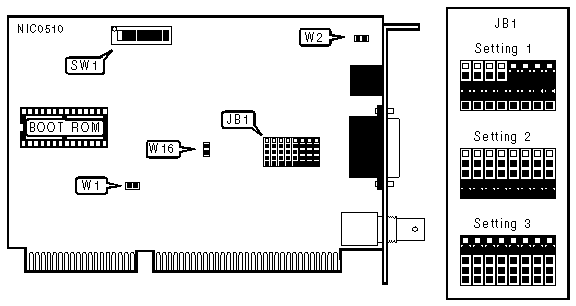

Note:See the diagram for an illustration of the settings. | ||
|
I/O BASE ADDRESS | |||
|
Address |
SW1/1 |
SW1/2 | |
| » |
300h |
On |
On |
|
320h |
On |
Off | |
|
340h |
Off |
On | |
|
360h |
Off |
Off | |
|
BOOT ROM ADDRESS | ||
|
Address |
SW1/3 |
SW1/4 |
|
C8000h |
On |
On |
|
CC000h |
On |
Off |
|
D0000h |
Off |
On |
|
D4000h |
Off |
Off |
|
INTERRUPT REQUEST | |||||
|
IRQ |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
|
2/9 |
On |
Off |
Off |
Off | |
| » |
3 |
Off |
Off |
Off |
On |
|
4 |
Off |
Off |
On |
Off | |
|
5 |
Off |
On |
Off |
Off | |
|
BOOT ROM | ||
|
Setting |
W1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
LINK INTEGRITY TEST | ||
|
Setting |
W2 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
Note:The link integrity test is only valid when the cable type is unshielded twisted pair. | ||
|
COMPATIBILITY MODE | ||
|
Setting |
W16 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:You must enable compatibility mode if the card is installed in one of the following systems: Compaq 286 Portable, IBM PC Model 30, or a clone using a Chips & Technologies chipset. | ||
