ADVANCED INTERLINK CORPORATION
AICETHER-8
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|

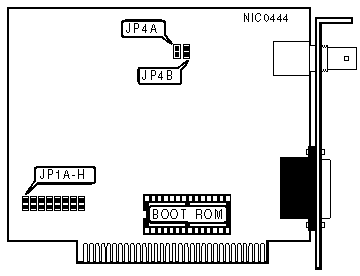

BOOT ROM | ||
|
Setting |
JP1A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:Location of the boot ROM may vary on different revisions of this card. | ||
|
BOOT ROM ADDRESS | ||
|
Address |
JP1B |
JP1C |
|
C8000h |
Closed |
Closed |
|
CC000h |
Closed |
Open |
|
D0000h |
Open |
Closed |
|
D4000h |
Open |
Open |
|
I/O BASE ADDRESS | |||
|
Address |
JP1D |
JP1E | |
|
200h |
Closed |
Closed | |
|
210h |
Closed |
Open | |
| » |
300h |
Open |
Closed |
|
310h |
Open |
Open | |
|
INTERRUPT REQUEST | ||||
|
IRQ |
JP1F |
JP1G |
JP1H | |
|
2 |
Closed |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Closed | |
|
CABLE TYPE | ||
|
Type |
JP4A |
JP4B |
|
RG-58A/U 50ohm coaxial |
Closed |
Closed |
|
AUI transceiver via DB-15 port |
Open |
Open |
