ASANTE TECHNOLOGIES, INC.
MACCON3 NUBUS
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-Bit NuBus (Apple) |
|
Topology |
Star Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port Unshielded twisted pair |
|
Boot ROM |
Not Available |
|

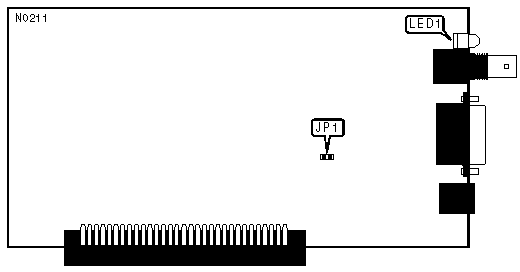

CABLE TYPE | ||
|
Type |
JP1 | |
| » |
Automatic selection |
Open |
|
Force AUI transceiver via DB-15 port |
Closed | |
|
Note:When automatic mode is selected, the card will sense which connector is being used and configure itself. | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being transmitted or receiving |
|
LED1 |
Green |
Off |
Data is not being transmitted or receiving |
