Card Type	NIC
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

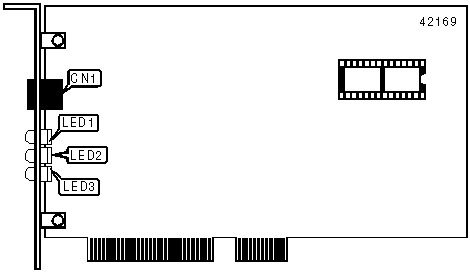

CONNECTIONS
Function	Label
RJ-45 connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Heavy network traffic
LED1	Yellow	Blinking	Network traffic present
LED1	Yellow	Off	No network traffic
LED2	Green	On	Network connection (10BASE-T) is good
LED2	Green	Blinking	Polarity reversed
LED2	Green	Off	Network connection is broken
LED3	Green	On	Network connection (100BASE-TX) is good
LED3	Green	Blinking	Polarity reversed
LED3	Green	Off	Network connection is broken
