YOUNG MICRO SYSTEMS, INC.
ADVANCED/ML
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
304mm x 178mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector |
|
NPU Options |
None |
|

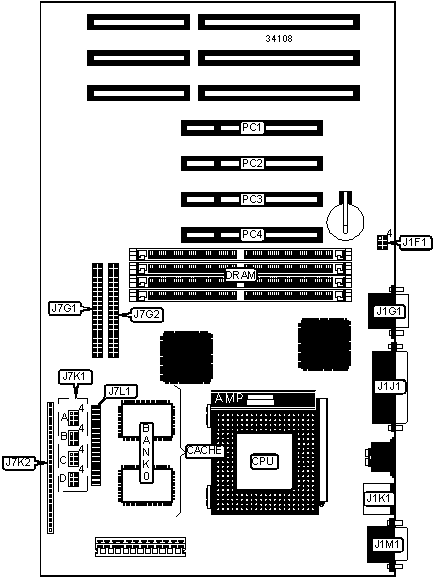

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
J1G1 |
Reset switch |
J7K2 pins 4 & 5 |
|
Parallel port |
J1J1 |
Power LED & keylock |
J7K2 pins 6 - 10 |
|
PS/2 mouse port |
J1K1 |
IDE interface LED |
J7K2 pins 11 - 14 |
|
Serial port 2 |
J1M1 |
Green PC connector |
J7K2 pins 15 - 19 |
|
IDE interface |
J7G1 |
IR connector |
J7K2 pins 20 - 25 |
|
IDE interface |
J7G2 |
Speaker |
J7K2 pins 26 - 29 |
|
Floppy drive interface |
J7L1 |
32-bit PCI slots |
PC1 - PC4 |
|
Chassis fan power |
J7K2 pins 1 - 3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J1F1 |
Unidentified |
|
» |
Password normal operation |
J7K1A |
Pins 1 & 2 closed |
|
Password clear |
J7K1A |
Pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
J7K1A |
Pins 4 & 5 closed |
|
CMOS memory clear |
J7K1A |
Pins 5 & 6 closed | |
|
» |
Setup access enabled |
J7K1B |
Pins 1 & 2 closed |
|
Setup access disabled |
J7K1B |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. The location of banks 0 & 1 are unidentified. | ||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(2) 32K x 32 |
|
512KB |
(2) 64K x 32 |
|
CPU SPEED SELECTION | ||||
|
CPU speed |
Clock speed |
Multiplier |
J7K1C |
J7K1D |
|
75MHz |
50MHz |
1.5x |
2 & 3, 5 & 6 |
1 & 2, 4 & 5 |
|
90MHz |
60MHz |
1.5x |
2 & 3, 4 & 5 |
1 & 2, 4 & 5 |
|
100MHz |
66MHz |
1.5x |
1 & 2, 5 & 6 |
1 & 2, 4 & 5 |
|
120MHz |
60MHz |
2x |
2 & 3, 4 & 5 |
2 & 3, 4 & 5 |
|
133MHz |
66MHz |
2x |
1 & 2, 5 & 6 |
2 & 3, 4 & 5 |
|
150MHz |
60MHz |
2.5x |
2 & 3, 4 & 5 |
2 & 3, 5 & 6 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 5 & 6 |
2 & 3, 5 & 6 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION | ||
|
Type |
J7K1B | |
|
OVD |
Pins 5 & 6 closed | |
| » |
VRE |
Pins 4 & 5 closed |
