Processor	80386DX
Processor Speed	33/40MHz
Chip Set	OPTI
Video Chip Set	None
Maximum Onboard Memory	64MB (32MB on external memory card)
Maximum Video Memory	None
Cache	32/64/128/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	External memory card
NPU Options	80387DX/3167

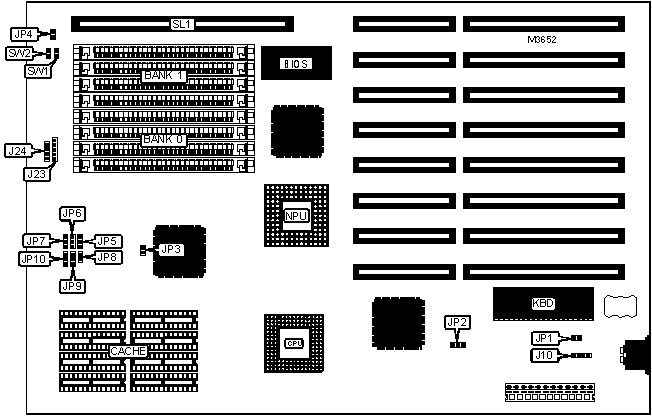

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J10	External memory card	SL1
Power LED & keylock	J23	Reset switch	SW1
Speaker	J24	Turbo switch	SW2
Turbo LED	JP4

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select CGA/EGA/PGA/VGA	JP1	Closed
	Monitor type select monochrome	JP1	Open
»	CMOS memory normal operation	JP2	Pins 2 & 3 closed
	CMOS memory clear	JP2	Pins 1 & 2 closed
	I/O bus speed select ATCLK/8	JP3	Closed
	I/O bus speed select ATCLK/6	JP3	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	None
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	None
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	None
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1
32KB	(4) 8K x 8	None
64KB	(4) 8K x 8	(4) 8K x 8
128KB	(4) 32K x 8	None
256KB	(4) 32K x 8	(4) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP5	JP6	JP7	JP8	JP9	JP10
32KB	1 & 2	1 & 2	1 & 2	Open	2 & 3	2 & 3
64KB	2 & 3	1 & 2	1 & 2	Open	2 & 3	1 & 2
128KB	2 & 3	1 & 2	2 & 3	Closed	2 & 3	1 & 2
256KB	2 & 3	2 & 3	2 & 3	Closed	1 & 2	1 & 2
Note: Pins designated should be in the closed position.
