Processor	80286
Processor Speed	16MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	4MB
Maximum Video Memory	None
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287/80287XL

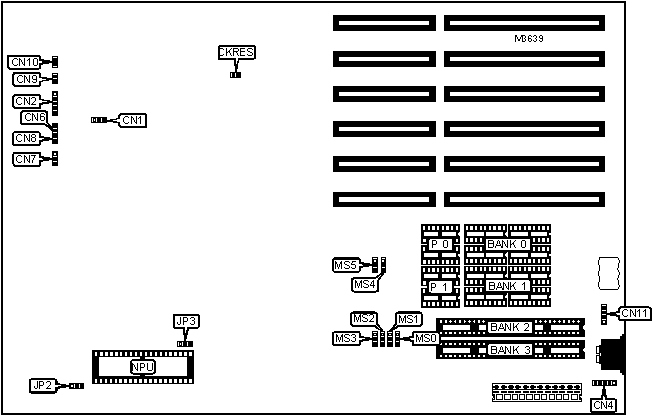

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	CN2	Turbo switch	CN8
Auxiliary keyboard connector	CN4	Speaker	CN9
Turbo LED	CN6	Reset switch	CN10
7 segment display connector	CN7	External battery	CN11

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Password enabled	CKRES	Open
	Password disabled	CKRES	Closed
	Monitor type select color	CN1	Pins 2 & 3 closed
	Monitor type select monochrome	CN1	Pins 1 & 2 closed
	NPU clock select external clock	JP2	Pins 1 & 2 closed
	NPU clock select internal clock	JP2	Pins 2 & 3 closed
	NPU clock frequency select CLK = frequency	JP3	Pins 1 & 2 closed
	NPU clock frequency select CLK/3 (80287)	JP3	Pins 2 & 3 closed
	NPU clock frequency select CLK/2 (80287XL)	JP3	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	P 0	Bank 1	P 1	Bank 2	Bank 3
512KB (A)	(4) 44256	(2) 41256	None	None	None	None
512KB (B)	None	None	None	None	(2) 256K x 9	None
1MB (A)	(4) 44256	(2) 41256	(4) 44256	(2) 41256	None	None
1MB (B)	None	None	None	None	(2) 256K x 9	(2) 256K x 9
1.5MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	(2) 256K x 9	None
2MB (A)	(4) 44256	(2) 41256	(4) 44256	(2) 41256	(2) 256K x 9	(2) 256K x 9
2MB (B)	None	None	None	None	(2) 1M x 9	None
4MB	None	None	None	None	(2) 1M x 9	(2) 1M x 9

DRAM CONFIGURATION
Size	MS0	MS1	MS2	MS3	MS4	MS5
512KB (A)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
512KB (B)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
1MB (A)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
1MB (B)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
1.5MB	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
2MB (A)	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
2MB (B)	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
4MB	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.
