Processor	80386SX
Processor Speed	20/25MHz
Chip Set	C & T
Video Chip Set	None
Maximum Onboard Memory	16MB
Maximum Video Memory	None
Cache	Unidentified
BIOS	C&T
Dimensions	330mm x 218mm
I/O Options	Cache slot
NPU Options	80387SX/3167

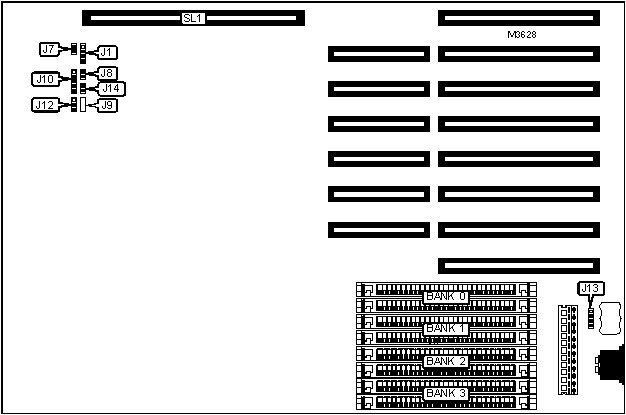

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J1	External battery	J13
Turbo switch	J7	Reset switch	J14
Turbo LED	J8	Cache slot	SL1
Power LED & keylock	J10

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J9	Unidentified
	Monitor type select color	J12	Pins 1 & 2 closed
	Monitor type select monochrome	J12	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	None	None	None
640KB	(2) 256K x 9	(2) 64K x 9
1MB	(2) 256K x 9	(2) 256K x 9	None	None
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	None
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	None	None	None
2.5MB	(2) 1M x 9	(2) 256K x 9	None	None
3MB	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
4MB	(2) 1M x 9	(2) 1M x 9	None	None
4.5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	None
5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	None
6.5MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
9MB	(2) 4M x 9	(2) 256K x 9	(2) 256K x 9	None
10MB	(2) 4M x 9	(2) 1M x 9	None	None
16MB	(2) 4M x 9	(2) 4M x 9	None	None

CACHE CONFIGURATION

Note: The size of the cache module is unidentified.
