VISION TECHNOLOGIES
VISION 2010
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
275mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), cache slot, IR connector, VRM connector |
|
NPU Options |
None |
|

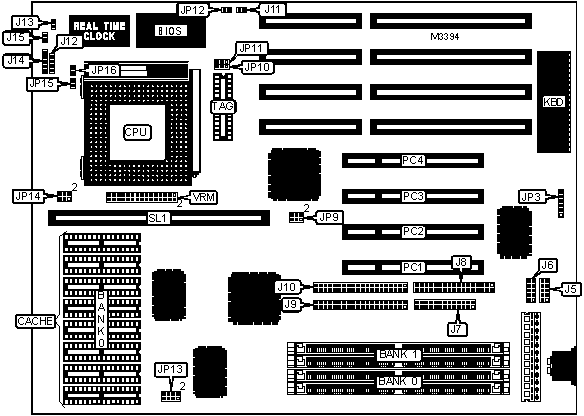

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
J5 |
Turbo LED |
J13 |
|
Serial port 2 |
J6 |
Power LED & keylock |
J14 |
|
Parallel port |
J7 |
Reset switch |
J15 |
|
Floppy drive interface |
J8 |
IR connector |
JP3 |
|
IDE interface 1 |
J9 |
Green PC connector |
JP12 |
|
IDE interface 2 |
J10 |
32-bit PCI slots |
PC1 - PC4 |
|
IDE interface LED |
J11 |
Cache slot |
SL1 |
|
Speaker |
J12 |
VRM connector |
VRM |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Intel IR connector used |
JP3 |
Pins 1 - 5 closed | |
|
HP IR connector used |
JP3 |
Pins 3 - 6 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
None |
(2) 512K x 36 |
|
4MB |
(2) 512K x 36 |
None |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
None |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
TAG |
SL1 |
|
256KB (A) |
(8) 32K x 8 |
(1) 8K x 8 |
Not installed |
|
256KB (B) |
None |
None |
256KB module installed |
|
512KB (A) |
(8) 64K x 8 |
(1) 16K/32K x 8 |
Not installed |
|
512KB (B) |
None |
None |
512KB module installed |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP10 |
|
256KB |
Pins 2 & 3 closed |
|
512KB |
Pins 1 & 2 closed |
|
CACHE VOLTAGE CONFIGURATION | |
|
Voltage |
JP13 |
|
Mixed voltage |
Pins 1 & 2, 3 & 4 closed |
|
3.3v |
Pins 5 & 6, 7 & 8 closed |
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP9 |
JP11 |
JP15 |
JP16 |
|
75MHz |
50MHz |
1.5x |
3 & 5, 4 & 6 |
1 & 2 |
Open |
Open |
|
90MHz |
60MHz |
1.5x |
1 & 3, 4 & 6 |
2 & 3 |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
3 & 5, 2 & 4 |
2 & 3 |
Open |
Open |
|
120MHz |
60MHz |
2x |
1 & 3, 4 & 6 |
2 & 3 |
Open |
Closed |
|
133MHz |
66MHz |
2x |
3 & 5, 2 & 4 |
2 & 3 |
Open |
Closed |
|
150MHz |
60MHz |
2.5x |
1 & 3, 4 & 6 |
2 & 3 |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU VOLTAGE SELECTION | |
|
Voltage |
JP14 |
|
3,3v |
Pins 1 & 2 closed |
|
3.4v |
Pins 3 & 4 closed |
|
3.5v |
Pins 5 & 6 closed |
|
VRM SELECTION | |
|
Setting |
VRM |
|
VRM not installed (using on board regulator) |
Pins 6 & 7, 21 & 22 closed |
|
VRM installed |
Installed |
