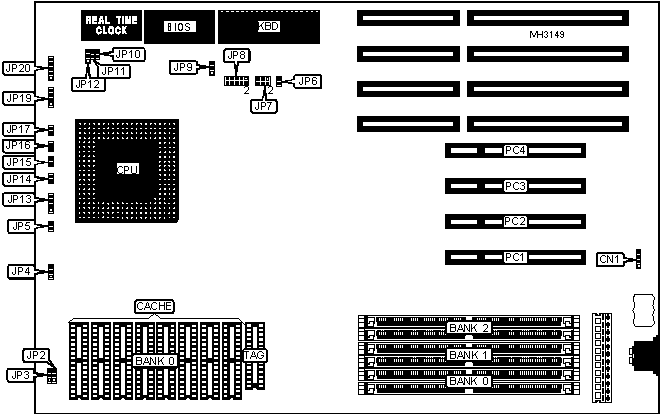

UNIDENTIFIED
PM586PA PCI
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
ALI |
|
Max. Onboard DRAM |
384MB |
|
Cache |
256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), green PC connector |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
CN1 |
Reset switch |
JP14 |
|
Chassis fan power |
JP5 |
Turbo switch |
JP16 |
|
Green PC connector (monitor) |
JP8 pins 5 & 6 |
Turbo LED |
JP17 |
|
Power supply fan |
JP8 pins 7 & 8 |
Speaker |
JP19 |
|
Chassis fan power |
JP8 pins 9 & 10 |
Power LED & keylock |
JP20 |
|
Chassis fan power |
JP13 |
32-bit PCI slots |
PC1 - PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CPU fan control always on |
JP4 |
pins 2 & 3 closed |
|
CPU fan control controlled by BIOS setup |
JP4 |
pins 1 & 2 closed | |
|
» |
ADS# select normal operation |
JP6 |
Closed |
|
ADS# select delay ADS# |
JP6 |
Open | |
|
» |
Factory configured - do not alter |
JP8 pins 1 & 2 |
N/A |
|
» |
Factory configured - do not alter |
JP8 pins 3 & 4 |
N/A |
|
» |
Factory configured - do not alter |
JP9 |
N/A |
|
» |
CMOS memory normal operation |
JP10 |
Open |
|
CMOS memory clear |
JP10 |
Closed | |
|
» |
Factory configured - do not alter |
JP11 |
N/A |
|
» |
Factory configured - do not alter |
JP12 |
N/A |
|
» |
Factory configured - do not alter |
JP15 |
N/A |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
NONE |
|
8MB |
(2) 256K x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 512K x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
NONE |
|
14MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
20MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
40MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 16M x 36 |
NONE |
NONE |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
160MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
NONE |
|
224MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
NONE |
|
288MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(8) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(8) 64K x 8 |
(1) 32K x 8 |
|
1MB |
(8) 128K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP2 |
JP3 |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
512KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
1MB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | |
|
Speed |
JP7 pins 1 & 2 |
|
60MHz |
Closed |
|
66MHz |
Open |
|
Note: Pins 3, 4, 5, 6 are not used. | |
