UNIDENTIFED
SQ-595
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VRM module connector, cache slot |
|
NPU Options |
None |
|

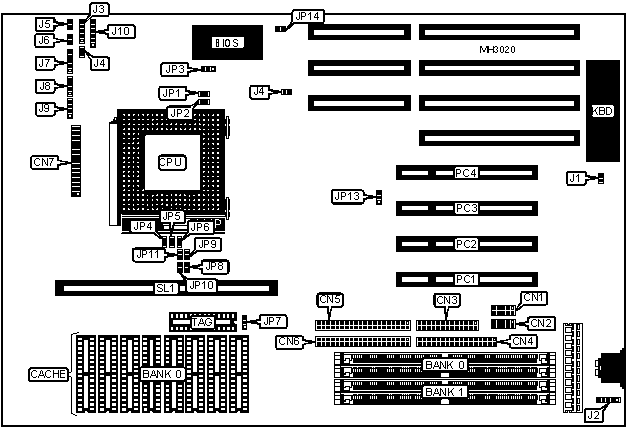

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
CN1 |
Green PC connector |
J4 |
|
Serial port 1 |
CN2 |
Reset switch |
J5 |
|
Parallel port |
CN3 |
Green PC LED |
J6 |
|
Floppy drive interface |
CN4 |
Power LED & keylock |
J7 |
|
IDE interface 2 |
CN5 |
IDE interface LED |
J8 |
|
IDE interface 1 |
CN6 |
Speaker |
J9 |
|
VRM module connector |
CN7 |
IRDA connector |
J10 |
|
PS/2 mouse interface |
J2 |
32-bit PCI slots |
PC1 - PC4 |
|
IR remote connector |
J3 |
Cache slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select color |
J1 |
Open |
|
Monitor type select monochrome |
J1 |
Closed | |
|
» |
CMOS memory normal operation |
J4 |
Open |
|
CMOS memory clear |
J4 |
Closed | |
|
» |
PCI CLK SYSCLK select 1/4 PCI CLCK |
JP13 |
pins 2 & 3 closed |
|
PCI CLK SYSCLK select 1/3 PCI CLCK |
JP13 |
pins 1 & 2 closed | |
|
» |
BIOS type select EPROM/5v flash |
JP14 |
Open |
|
BIOS type select 12v flash |
JP14 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
TAG |
SL1 |
|
256KB async |
(8) 32K x 8 |
(1) 32K x 8 |
Not installed |
|
256KB burst |
NONE |
NONE |
Installed |
|
256KB pipeline burst |
NONE |
NONE |
Installed |
|
512KB async |
(8) 64K x 8 |
(1) 32K x 8 |
Not installed |
|
512KB burst |
NONE |
NONE |
Installed |
|
512KB pipeline burst |
NONE |
NONE |
Installed |
|
Note: If SL1 is filled, Bank 0 must remain empty. If SL1 Is used, only one of the four types of cache can be installed. | |||
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP7 |
JP8 |
JP9 |
JP10 |
JP11 |
|
256KB async |
1 & 2 |
Open |
Closed |
Closed |
Open |
|
256KB burst |
2 & 3 |
Open |
Closed |
Open |
Closed |
|
256KB pipeline burst |
1 & 2 |
Closed |
Open |
Closed |
Open |
|
512KB async |
1 & 2 |
Open |
Open |
Closed |
Open |
|
512KB burst |
1 & 2 |
Closed |
Open |
Open |
Closed |
|
512KB pipeline burst |
1 & 2 |
Open |
Open |
Open |
Closed |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED CONFIGURATION | |||||
|
Speed |
JP1 |
JP2 |
JP4 |
JP5 |
JP6 |
|
75MHz |
Open |
Open |
Closed |
Open |
Open |
|
100iMHz |
Open |
Open |
Open |
Open |
Closed |
|
100MHz |
Open |
Open |
Open |
Closed |
Open |
|
120MHz |
Closed |
Open |
Open |
Open |
Closed |
|
133MHz |
Closed |
Open |
Open |
Closed |
Open |
|
150MHz |
Closed |
Closed |
Open |
Open |
Closed |
|
CPU VOLTAGE CONFIGURATION | |
|
Voltage |
JP3 |
|
3.52v |
pins 1 & 2 closed |
|
3.385v |
pins 2 & 3 closed |
