Processor	AM386DX/80386DX/AM486DXL/CX486DLC
Processor Speed	33/40MHz
Chip Set	OPTI
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	240mm x 221mm
I/O Options	32-bit VESA local bus slot
NPU Options	80387DX/CX487DLC

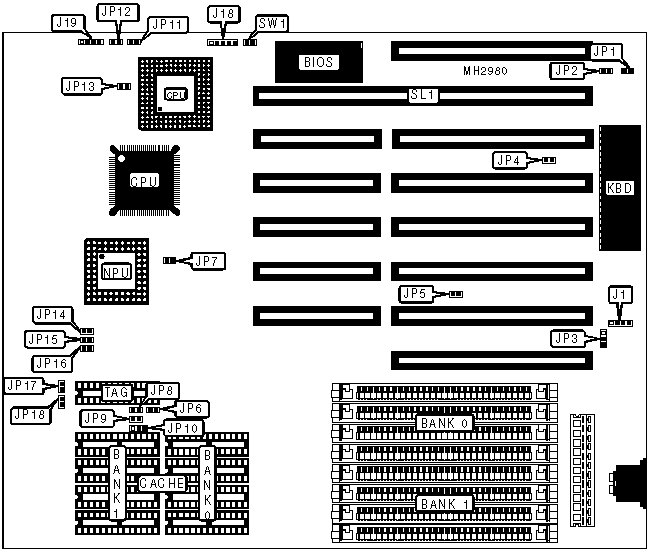

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Turbo switch	JP12
Power LED & keylock	J18	32-bit VESA local bus slot	SL1
Speaker	J19	Reset switch	SW1
Turbo LED	JP11

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP3	pins 2 & 3 closed
	CMOS memory clear	JP3	pins 1 & 2 closed
»	Monitor type select color	JP4	Closed
	Monitor type select monochrome	JP4	Open
»	Factory configured - do not alter	JP7	N/A
»	Factory configured - do not alter	JP14	N/A
»	Factory configured - do not alter	JP15	N/A
»	Factory configured - do not alter	JP16	N/A

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	NONE	(1) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP6	JP8	JP9	JP10	JP17	JP18
64KB	Open	Open	Open	2 & 3	Open	Open
128KB	Closed	Closed	Open	1 & 2	Open	Closed
256KB	Closed	Closed	Closed	2 & 3	Closed	Closed
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION
Type	JP1	JP5	JP13
AM486DX	Open	Open	Open
80386DX	Open	Open	Open
AM386DXL	Open	Open	Open
CX486DLC	Closed	Closed	Closed

CPU SPEED CONFIGURATION
Speed	JP2
33MHz	Closed
40MHz	Open
