Processor	80386DX
Processor Speed	20MHz
Chip Set	Unidentified
Max. Onboard DRAM	16MB (8MB on external memory card)
Cache	None
BIOS	Phoenix
Dimensions	330mm x 218mm
I/O Options	External memory card
NPU Options	80387DX

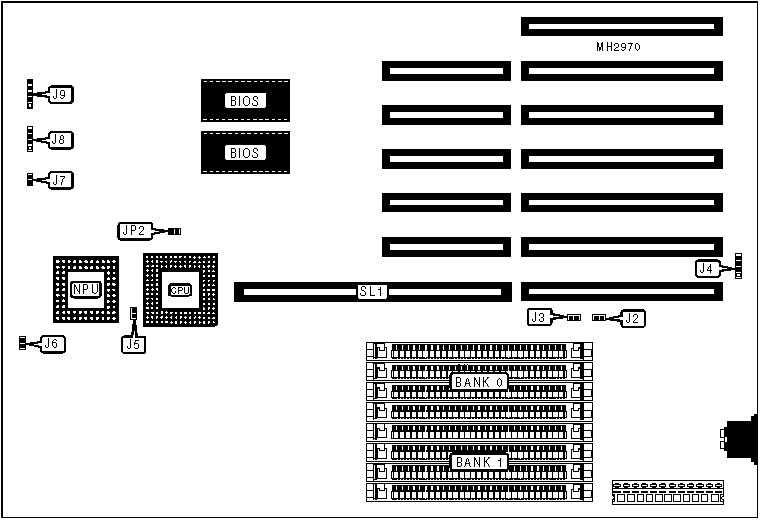

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J4	Speaker	J8
Turbo LED	J6	Power LED & keylock	J9
Reset switch	J7	External memory card	SL1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	J2	Open
	Monitor type select color	J2	Closed
»	Factory configured - do not alter	J3	Open
»	NPU disabled	J5	Open
	NPU enabled	J5	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9

CPU TYPE CONFIGURATION
Type	JP2
A80386DX	Closed
A80386DX IV	Open
