UNIDENTIFIED
PANDA386V
|
Processor |
AM386DX/AM386DXL/80386DX/TI486DLC/CX486DLC/TI486DLC2/CX486DLC2 |
|
Processor Speed |
33/40/50MHz |
|
Chip Set |
Panda |
|
Max. Onboard DRAM |
128MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
254mm x 220mm |
|
I/O Options |
32-bit VESA local bus slots (2) |
|
NPU Options |
80387DX/3167 |
|

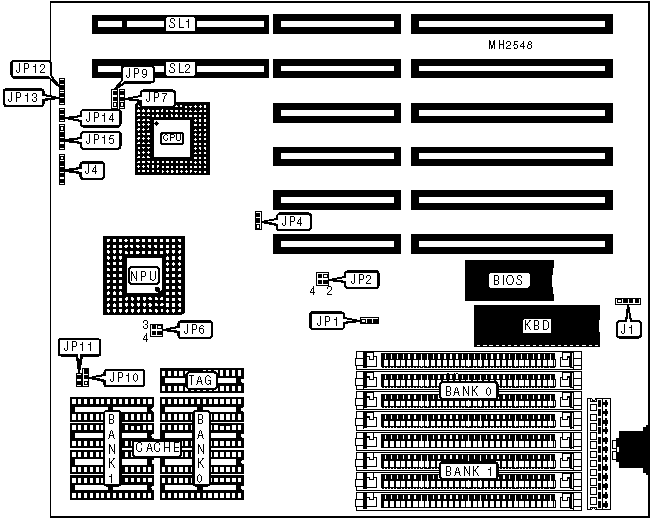

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Reset switch |
JP14 |
|
Power LED & keylock |
J4 |
Speaker |
JP15 |
|
Turbo LED |
JP12 |
32-bit VESA local bus slots |
SL1 & SL2 |
|
Turbo switch |
JP13 | ||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
1MB |
NONE |
(4) 256K x 9 |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
NONE |
(4) 1M x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
16MB |
NONE |
(4) 4M x 9 |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
64MB |
(4) 16M x 9 |
NONE |
|
64MB |
NONE |
(4) 16M x 9 |
|
65MB |
(4) 16M x 9 |
(4) 256K x 9 |
|
65MB |
(4) 256K x 9 |
(4) 16M x 9 |
|
68MB |
(4) 16M x 9 |
(4) 1M x 9 |
|
68MB |
(4) 1M x 9 |
(4) 16M x 9 |
|
80MB |
(4) 16M x 9 |
(4) 4M x 9 |
|
80MB |
(4) 4M x 9 |
(4) 16M x 9 |
|
128MB |
(4) 16M x 9 |
(4) 16M x 9 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 or (1) 32K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP6 |
JP10 |
JP11 |
|
64KB |
Open |
pins 1 & 2 closed |
Open |
|
128KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
Closed |
|
256KB |
pins 1 & 2, 3 & 4 closed |
pins 1 & 2 closed |
Closed |
|
CPU TYPE CONFIGURATION | ||
|
Type |
JP1 |
JP4 |
|
AM386DX |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
AM386DXL |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
80386DX |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
TI486DLC |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
CX486DLC |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
TI486DLC2 |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
CX486DLC2 |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
CPU CLOCK SPEED CONFIGURATION | |
|
Speed |
JP2 |
|
50MHz |
Open |
|
66MHz |
pins 3 & 4 closed |
|
80MHz |
pins 1 & 2 closed |
|
VESA WAIT STATE CONFIGURATION | |
|
Wait states |
JP9 |
|
0 wait states |
pins 1 & 2 closed |
|
1 wait state |
pins 2 & 3 closed |
|
BUS SPEED CONFIGURATION | |
|
CPU speed |
JP7 |
|
<= 33MHz |
pins 1 & 2 closed |
|
> 33MHz |
pins 2 & 3 closed |
