MB-4D50AG

UNIDENTIFIED

MB-4D50AG

Processor

CXM6/80486SX/CXM7/80486DX/80486DX2/P4S/P23S/P24S/Pentium Overdrive

Processor Speed

20/25/33/40/50(internal)/50/66(internal)MHz

Chip Set

ALI

Max. Onboard DRAM

128MB

Cache

64/128/256/512KB

BIOS

Unidentified

Dimensions

250mm x 220mm

I/O Options

32-bit VESA local bus slots (2), 32-bit PCI slots (3), green PC connector

NPU Options

None

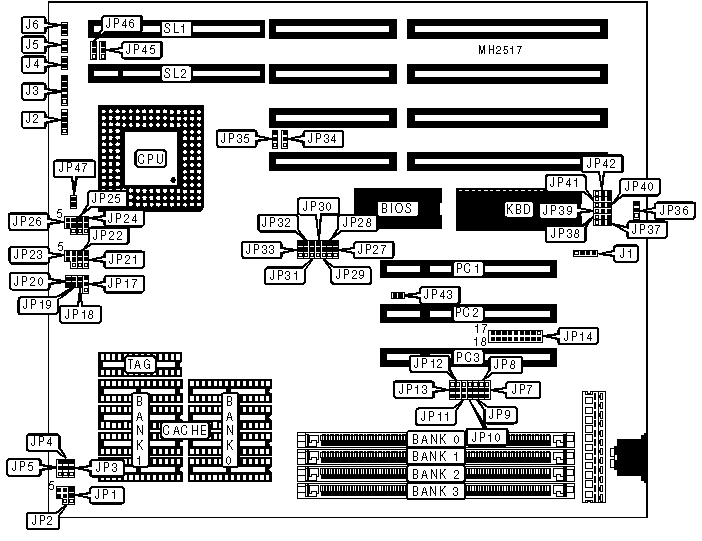

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J1

Green PC connector (monitor)

JP6

Speaker

J2

Green PC connector

JP40

Power LED & keylock

J3

Green PC connector

JP41

Turbo switch

J4

32-bit VESA local bus slots

SL1 & SL2

Turbo LED

J5

32-bit PCI slots

PC1 - PC3

Reset switch

J6

Note: The location of JP6 is unidentified.

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

JP37

N/A

»

CMOS memory normal operation

JP38

pins 1 & 2 closed

CMOS memory clear

JP38

pins 2 & 3 closed

»

Monitor type select color

JP39

pins 2 & 3 closed

Monitor type select monochrome

JP39

pins 1 & 2 closed

»

Factory configured - do not alter

JP42

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

NONE

NONE

NONE

2MB

(1) 512K x 36

NONE

NONE

NONE

2MB

(1) 256K x 36

(1) 256K x 36

NONE

NONE

3MB

(1) 512K x 36

NONE

(1) 256K x 36

NONE

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

NONE

4MB

(1) 1M x 36

NONE

NONE

NONE

4MB

(1) 512K x 36

NONE

(1) 512K x 36

NONE

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 256K x 36

(1) 1M x 36

NONE

NONE

5MB

(1) 1M x 36

(1) 256K x 36

NONE

NONE

6MB

(1) 512K x 36

NONE

(1) 1M x 36

NONE

6MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

NONE

6MB

(1) 256K x 36

(1) 1M x 36

(1) 256K x 36

NONE

6MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

NONE

7MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

7MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

(1) 256K x 36

7MB

(1) 256K x 36

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

8MB

(1) 2M x 36

NONE

NONE

NONE

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

9MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

NONE

9MB

(1) 1M x 36

(1) 256K x 36

(1) 1M x 36

NONE

9MB

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

NONE

10MB

(1) 512K x 36

NONE

(1) 2M x 36

NONE

10MB

(1) 2M x 36

NONE

(1) 512K x 36

NONE

10MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

10MB

(1) 256K x 36

(1) 1M x 36

(1) 256K x 36

(1) 1M x 36

10MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

12MB

(1) 2M x 36

NONE

(1) 1M x 36

NONE

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

NONE

13MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

NONE

NONE

NONE

16MB

(1) 2M x 36

NONE

(1) 2M x 36

NONE

17MB

(1) 256K x 36

(1) 4M x 36

NONE

NONE

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

17MB

(1) 4M x 36

(1) 256K x 36

NONE

NONE

18MB

(1) 512K x 36

NONE

(1) 4M x 36

NONE

18MB

(1) 256K x 36

(1) 256K x 36

(1) 4M x 36

NONE

18MB

(1) 256K x 36

(1) 4M x 36

(1) 256K x 36

NONE

18MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

NONE

19MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 4M x 36

19MB

(1) 256K x 36

(1) 256K x 36

(1) 4M x 36

(1) 256K x 36

19MB

(1) 256K x 36

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

20MB

(1) 1M x 36

(1) 4M x 36

NONE

NONE

20MB

(1) 4M x 36

(1) 1M x 36

NONE

NONE

20MB

(1) 512K x 36

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

21MB

(1) 256K x 36

(1) 1M x 36

(1) 4M x 36

NONE

21MB

(1) 256K x 36

(1) 4M x 36

(1) 1M x 36

NONE

21MB

(1) 1M x 36

(1) 256K x 36

(1) 4M x 36

NONE

21MB

(1) 1M x 36

(1) 4M x 36

(1) 256K x 36

NONE

21MB

(1) 4M x 36

(1) 1M x 36

(1) 256K x 36

NONE

22MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

(1) 4M x 36

22MB

(1) 256K x 36

(1) 256K x 36

(1) 4M x 36

(1) 1M x 36

22MB

(1) 256K x 36

(1) 1M x 36

(1) 256K x 36

(1) 4M x 36

22MB

(1) 256K x 36

(1) 1M x 36

(1) 4M x 36

(1) 256K x 36

22MB

(1) 256K x 36

(1) 4M x 36

(1) 256K x 36

(1) 1M x 36

22MB

(1) 256K x 36

(1) 4M x 36

(1) 1M x 36

(1) 256K x 36

24MB

(1) 2M x 36

NONE

(1) 4M x 36

NONE

24MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

NONE

24MB

(1) 1M x 36

(1) 4M x 36

(1) 1M x 36

NONE

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

NONE

25MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

25MB

(1) 256K x 36

(1) 1M x 36

(1) 4M x 36

(1) 1M x 36

25MB

(1) 256K x 36

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

32MB

(1) 8M x 36

NONE

NONE

NONE

32MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

33MB

(1) 8M x 36

NONE

(1) 256K x 36

NONE

33MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

NONE

33MB

(1) 4M x 36

(1) 256K x 36

(1) 4M x 36

NONE

33MB

(1) 4M x 36

(1) 4M x 36

(1) 256K x 36

NONE

34MB

(1) 512K x 36

NONE

(1) 8M x 36

NONE

34MB

(1) 8M x 36

NONE

(1) 512K x 36

NONE

34MB

(1) 256K x 36

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

34MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 256K x 36

36MB

(1) 8M x 36

NONE

(1) 1M x 36

NONE

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

NONE

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

36MB

(1) 4M x 36

(1) 1M x 36

(1) 4M x 36

NONE

36MB

(1) 4M x 36

(1) 4M x 36

(1) 1M x 36

NONE

37MB

(1) 256K x 36

(1) 4M x 36

(1) 1M x 36

(1) 4M x 36

37MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 1M x 36

40MB

(1) 2M x 36

NONE

(1) 8M x 36

NONE

40MB

(1) 8M x 36

NONE

(1) 2M x 36

NONE

48MB

(1) 8M x 36

NONE

(1) 4M x 36

NONE

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

NONE

49MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 8M x 36

NONE

(1) 8M x 36

NONE

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

68MB

(1) 512K x 36

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

64KB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

128KB

(4) 32K x 8

NONE

(1) 8K x 8

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

512KB

(4) 128K x 8

NONE

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP1

JP2

JP3

JP4

JP5

64KB

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

128KB

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

256KB

2 & 3

4 & 5

2 & 3

2 & 3

1 & 2

512KB

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

Note: Pins designated should be closed position.

CPU TYPE CONFIGURATION

Type

JP15

JP16

JP17

JP18

JP19

JP20

CX M6

Open

Open

1 & 2

Open

Closed

Open

80486SX

Open

Open

1 & 2

Closed

Open

Open

CX M7

Closed

Open

1 & 2

Open

Closed

Closed

AM486DXL

Closed

Open

1 & 2

Closed

Open

Open

80486DX

Closed

Open

1 & 2

Closed

Open

Open

80486DX2

Closed

Open

1 & 2

Closed

Open

Open

P23S

Closed

Closed

1 & 2

Closed

Open

Open

P4S

Closed

Closed

1 & 2

Closed

Open

Open

P24S

Closed

Closed

1 & 2

Closed

Open

Open

P24T

Closed

Open

2 & 3

Closed

Open

Closed

Note: Pins designated should be in the closed position. The location of JP15 & JP16 are unidentified.

CPU TYPE CONFIGURATION (CON’T)

Type

JP21

JP22

JP23

JP24

JP25

JP26

CX M6

1 & 2

2 & 3

4 & 5

Open

1 & 2

4 & 5

80486SX

1 & 2

1 & 2

2 & 4

Open

Open

2 & 4

CX M7

2 & 3

2 & 3

4 & 5

Open

1 & 2

4 & 5

AM486DXL

2 & 3

2 & 3

1 & 2

2 & 3

Open

1 & 2

80486DX

2 & 3

1 & 2

2 & 4

2 & 3

Open

2 & 4

80486DX2

2 & 3

1 & 2

2 & 4

2 & 3

Open

2 & 4

P23S

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

P4S

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

P24S

1 & 2

2 & 3

2 & 3

Open

2 & 3

2 & 3

P24T

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION (BIOS SETUP)

Type

JP7

JP8

JP9

CX M6

pins 2 & 3 closed

pins 1 & 2 closed

pins 1 & 2 closed

80486SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

CX M7

pins 2 & 3 closed

pins 1 & 2 closed

pins 1 & 2 closed

AM486DXL

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

80486DX2

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

CPU TYPE CONFIGURATION (CHIPSET SETUP)

Type

JP27

JP29

JP30

JP47

CX M6 (1x)

pins 2 & 3 closed

pins 2 & 3 closed

pins 1 & 2 closed

Open

CX M6 (2x)

pins 2 & 3 closed

pins 2 & 3 closed

pins 1 & 2 closed

Closed

80486SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

N/A

CX M7 (1x)

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

Open

CX M7 (2x)

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

Closed

AM486DXL

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

N/A

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

N/A

80486DX2

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

N/A

CPU SPEED CONFIGURATION

Speed

JP10

JP11

JP12

JP13

JP28

20MHz

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

25MHz

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

33MHz

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

40MHz

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

50iMHz

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

50MHz

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

66iMHz

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION (CON’T)

Speed

JP31

JP32

JP33

JP34

JP35

20MHz

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

25MHz

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

33MHz

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

40MHz

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

50iMHz

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

50MHz

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

66iMHz

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

VESA WAIT STATE CONFIGURATION

Wait states

JP46

0 wait states

pins 1 & 2 closed

1 wait state

pins 2 & 3 closed

BUS SPEED CONFIGURATION

CPU speed

JP45

<= 33MHz

pins 1 & 2 closed

> 33MHz

pins 2 & 3 closed

BIOS CONFIGURATION

Type

JP36

JP43

EPROM

pins 1 & 2 closed

Open

Flash ROM

pins 2 & 3 closed

Closed

PCI IRQ CONFIGURATION (INT A)

IRQ

JP14

IRQ5

pins 1 & 2 closed

IRQ9

pins 3 & 4 closed

IRQ10

pins 5 & 6 closed

PCI IRQ CONFIGURATION (INT B)

IRQ

JP14

IRQ11

pins 7 & 8 closed

IRQ12

pins 9 & 10 closed

PCI IRQ CONFIGURATION (INT C)

IRQ

JP14

IRQ14

pins 11 & 12 closed

IRQ15

pins 13 & 14 closed

PCI IRQ CONFIGURATION (INT D)

Interrupt

JP14

INT4J

pins 17 & 18 closed

Processor	CXM6/80486SX/CXM7/80486DX/80486DX2/P4S/P23S/P24S/Pentium Overdrive
Processor Speed	20/25/33/40/50(internal)/50/66(internal)MHz
Chip Set	ALI
Max. Onboard DRAM	128MB
Cache	64/128/256/512KB
BIOS	Unidentified
Dimensions	250mm x 220mm
I/O Options	32-bit VESA local bus slots (2), 32-bit PCI slots (3), green PC connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Green PC connector (monitor)	JP6
Speaker	J2	Green PC connector	JP40
Power LED & keylock	J3	Green PC connector	JP41
Turbo switch	J4	32-bit VESA local bus slots	SL1 & SL2
Turbo LED	J5	32-bit PCI slots	PC1 - PC3
Reset switch	J6
Note: The location of JP6 is unidentified.

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP37	N/A
»	CMOS memory normal operation	JP38	pins 1 & 2 closed
	CMOS memory clear	JP38	pins 2 & 3 closed
»	Monitor type select color	JP39	pins 2 & 3 closed
	Monitor type select monochrome	JP39	pins 1 & 2 closed
»	Factory configured - do not alter	JP42	N/A

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	NONE	NONE	NONE
2MB	(1) 512K x 36	NONE	NONE	NONE
2MB	(1) 256K x 36	(1) 256K x 36	NONE	NONE
3MB	(1) 512K x 36	NONE	(1) 256K x 36	NONE
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	NONE
4MB	(1) 1M x 36	NONE	NONE	NONE
4MB	(1) 512K x 36	NONE	(1) 512K x 36	NONE
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 256K x 36	(1) 1M x 36	NONE	NONE
5MB	(1) 1M x 36	(1) 256K x 36	NONE	NONE
6MB	(1) 512K x 36	NONE	(1) 1M x 36	NONE
6MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	NONE
6MB	(1) 256K x 36	(1) 1M x 36	(1) 256K x 36	NONE
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	NONE
7MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36
7MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	(1) 256K x 36
7MB	(1) 256K x 36	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36
8MB	(1) 2M x 36	NONE	NONE	NONE
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
9MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	NONE
9MB	(1) 1M x 36	(1) 256K x 36	(1) 1M x 36	NONE
9MB	(1) 1M x 36	(1) 1M x 36	(1) 256K x 36	NONE
10MB	(1) 512K x 36	NONE	(1) 2M x 36	NONE
10MB	(1) 2M x 36	NONE	(1) 512K x 36	NONE
10MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36
10MB	(1) 256K x 36	(1) 1M x 36	(1) 256K x 36	(1) 1M x 36
10MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 256K x 36
12MB	(1) 2M x 36	NONE	(1) 1M x 36	NONE
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
13MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	NONE	NONE	NONE
16MB	(1) 2M x 36	NONE	(1) 2M x 36	NONE
17MB	(1) 256K x 36	(1) 4M x 36	NONE	NONE

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
17MB	(1) 4M x 36	(1) 256K x 36	NONE	NONE
18MB	(1) 512K x 36	NONE	(1) 4M x 36	NONE
18MB	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36	NONE
18MB	(1) 256K x 36	(1) 4M x 36	(1) 256K x 36	NONE
18MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	NONE
19MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36
19MB	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36	(1) 256K x 36
19MB	(1) 256K x 36	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36
20MB	(1) 1M x 36	(1) 4M x 36	NONE	NONE
20MB	(1) 4M x 36	(1) 1M x 36	NONE	NONE
20MB	(1) 512K x 36	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36
21MB	(1) 256K x 36	(1) 1M x 36	(1) 4M x 36	NONE
21MB	(1) 256K x 36	(1) 4M x 36	(1) 1M x 36	NONE
21MB	(1) 1M x 36	(1) 256K x 36	(1) 4M x 36	NONE
21MB	(1) 1M x 36	(1) 4M x 36	(1) 256K x 36	NONE
21MB	(1) 4M x 36	(1) 1M x 36	(1) 256K x 36	NONE
22MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	(1) 4M x 36
22MB	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36	(1) 1M x 36
22MB	(1) 256K x 36	(1) 1M x 36	(1) 256K x 36	(1) 4M x 36
22MB	(1) 256K x 36	(1) 1M x 36	(1) 4M x 36	(1) 256K x 36
22MB	(1) 256K x 36	(1) 4M x 36	(1) 256K x 36	(1) 1M x 36
22MB	(1) 256K x 36	(1) 4M x 36	(1) 1M x 36	(1) 256K x 36
24MB	(1) 2M x 36	NONE	(1) 4M x 36	NONE
24MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	NONE
24MB	(1) 1M x 36	(1) 4M x 36	(1) 1M x 36	NONE
24MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	NONE
25MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36
25MB	(1) 256K x 36	(1) 1M x 36	(1) 4M x 36	(1) 1M x 36
25MB	(1) 256K x 36	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36
32MB	(1) 8M x 36	NONE	NONE	NONE
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
33MB	(1) 8M x 36	NONE	(1) 256K x 36	NONE
33MB	(1) 256K x 36	(1) 4M x 36	(1) 4M x 36	NONE
33MB	(1) 4M x 36	(1) 256K x 36	(1) 4M x 36	NONE
33MB	(1) 4M x 36	(1) 4M x 36	(1) 256K x 36	NONE
34MB	(1) 512K x 36	NONE	(1) 8M x 36	NONE
34MB	(1) 8M x 36	NONE	(1) 512K x 36	NONE
34MB	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36	(1) 4M x 36
34MB	(1) 256K x 36	(1) 4M x 36	(1) 4M x 36	(1) 256K x 36
36MB	(1) 8M x 36	NONE	(1) 1M x 36	NONE
36MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	NONE

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	NONE	(1) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8
512KB	(4) 128K x 8	NONE	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP1	JP2	JP3	JP4	JP5
64KB	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
128KB	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
256KB	2 & 3	4 & 5	2 & 3	2 & 3	1 & 2
512KB	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3
Note: Pins designated should be closed position.

CPU TYPE CONFIGURATION
Type	JP15	JP16	JP17	JP18	JP19	JP20
CX M6	Open	Open	1 & 2	Open	Closed	Open
80486SX	Open	Open	1 & 2	Closed	Open	Open
CX M7	Closed	Open	1 & 2	Open	Closed	Closed
AM486DXL	Closed	Open	1 & 2	Closed	Open	Open
80486DX	Closed	Open	1 & 2	Closed	Open	Open
80486DX2	Closed	Open	1 & 2	Closed	Open	Open
P23S	Closed	Closed	1 & 2	Closed	Open	Open
P4S	Closed	Closed	1 & 2	Closed	Open	Open
P24S	Closed	Closed	1 & 2	Closed	Open	Open
P24T	Closed	Open	2 & 3	Closed	Open	Closed
Note: Pins designated should be in the closed position. The location of JP15 & JP16 are unidentified.

CPU TYPE CONFIGURATION (CON’T)
Type	JP21	JP22	JP23	JP24	JP25	JP26
CX M6	1 & 2	2 & 3	4 & 5	Open	1 & 2	4 & 5
80486SX	1 & 2	1 & 2	2 & 4	Open	Open	2 & 4
CX M7	2 & 3	2 & 3	4 & 5	Open	1 & 2	4 & 5
AM486DXL	2 & 3	2 & 3	1 & 2	2 & 3	Open	1 & 2
80486DX	2 & 3	1 & 2	2 & 4	2 & 3	Open	2 & 4
80486DX2	2 & 3	1 & 2	2 & 4	2 & 3	Open	2 & 4
P23S	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
P4S	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
P24S	1 & 2	2 & 3	2 & 3	Open	2 & 3	2 & 3
P24T	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION (BIOS SETUP)
Type	JP7	JP8	JP9
CX M6	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed
80486SX	pins 1 & 2 closed	pins 1 & 2 closed	pins 2 & 3 closed
CX M7	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed
AM486DXL	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed
80486DX	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
80486DX2	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed

CPU TYPE CONFIGURATION (CHIPSET SETUP)
Type	JP27	JP29	JP30	JP47
CX M6 (1x)	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed	Open
CX M6 (2x)	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed	Closed
80486SX	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	N/A
CX M7 (1x)	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed	Open
CX M7 (2x)	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed	Closed
AM486DXL	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	N/A
80486DX	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	N/A
80486DX2	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	N/A

CPU SPEED CONFIGURATION
Speed	JP10	JP11	JP12	JP13	JP28
20MHz	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
25MHz	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
33MHz	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
40MHz	2 & 3	2 & 3	2 & 3	1 & 2	2 & 3
50iMHz	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
50MHz	2 & 3	2 & 3	1 & 2	2 & 3	2 & 3
66iMHz	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION (CON’T)
Speed	JP31	JP32	JP33	JP34	JP35
20MHz	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
25MHz	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
33MHz	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
40MHz	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
50iMHz	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
50MHz	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
66iMHz	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
Note: Pins designated should be in the closed position.

VESA WAIT STATE CONFIGURATION
Wait states	JP46
0 wait states	pins 1 & 2 closed
1 wait state	pins 2 & 3 closed

BUS SPEED CONFIGURATION
CPU speed	JP45
<= 33MHz	pins 1 & 2 closed
> 33MHz	pins 2 & 3 closed

BIOS CONFIGURATION
Type	JP36	JP43
EPROM	pins 1 & 2 closed	Open
Flash ROM	pins 2 & 3 closed	Closed

PCI IRQ CONFIGURATION (INT A)
IRQ	JP14
IRQ5	pins 1 & 2 closed
IRQ9	pins 3 & 4 closed
IRQ10	pins 5 & 6 closed

PCI IRQ CONFIGURATION (INT B)
IRQ	JP14
IRQ11	pins 7 & 8 closed
IRQ12	pins 9 & 10 closed

PCI IRQ CONFIGURATION (INT C)
IRQ	JP14
IRQ14	pins 11 & 12 closed
IRQ15	pins 13 & 14 closed

PCI IRQ CONFIGURATION (INT D)
Interrupt	JP14
INT4J	pins 17 & 18 closed
