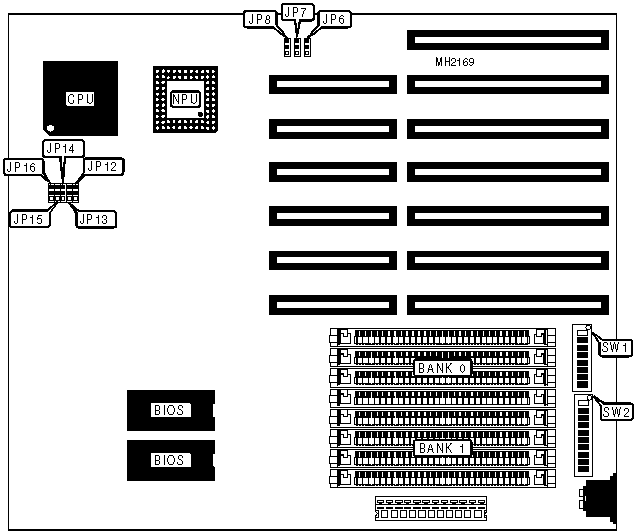

UNIDENTIFIED
1100 25/33
|
Processor |
80386DX |
|
Processor Speed |
25/33MHz |
|
Chip Set |
Unidentified |
|
Max. onboard DRAM |
8MB |
|
Cache |
None |
|
BIOS |
Unidentified |
|
Dimensions |
254mm x 220mm |
|
I/O Options |
None |
|
NPU Options |
80387 |
|
EPROM TYPE CONFIGURATION | ||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
27128 |
On |
Off |
On |
Off |
|
27355 |
On |
Off |
Off |
On |
|
27512 |
Off |
On |
Off |
On |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Setting | |
| » |
Serial 1-COM1 |
SW2/1 |
On |
|
Serial 2 COM1 |
SW2/1 |
Off | |
| » |
COM1 IRQ4 enabled |
SW2/2 |
Off |
|
COM1 IRQ4 disabled |
SW2/2 |
On | |
| » |
COM2 IRQ3 enabled |
SW2/3 |
Off |
|
COM2 IRQ3 disabled |
SW2/3 |
On | |
| » |
Parallel port enabled |
SW2/4 |
Off |
|
Parallel port disabled |
SW2/4 |
On | |
| » |
Memory mode RAM BIOS |
SW2/8 |
Off |
|
Memory mode ROM BIOS |
SW2/8 |
On | |
| » |
Primary monitor type CGA |
SW2/9 |
On |
|
Primary monitor type mono |
SW2/9 |
Off | |
| » |
RAM bank 1 disabled |
SW2/10 |
On |
|
RAM bank 1 enabled |
SW2/10 |
Off | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(4) 512K x 9 |
NONE |
|
4MB |
(4) 512K x 9 |
(4) 512K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
4MB |
NONE |
(4) 1M x 9 |
|
6MB |
(4) 1M x 9 |
(4) 512KB x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
PARALLEL PORT SELECT | |||
|
Port |
SW2/5 |
SW2/6 |
SW2/7 |
|
LPT1 |
Off |
Off |
On |
|
LPT2 |
On |
On |
Off |
|
COPROCESSOR CONFIGURATION | |||
|
Type |
JP6 |
JP7 |
JP8 |
|
80387 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
NONE |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
RAM CACHE CONFIGURATION | |
|
Setting |
JP12 |
|
256KB RAM @ 0A0000;remaped to FA0000 |
Pins 1 & 2 closed |
|
Disable cache |
Pins 2 & 3 closed |
|
MEMORY SIZE CONFIGURATION | |||||
|
Bank 0 |
Bank 1 |
JP13 |
JP14 |
JP15 |
JP16 |
|
2MB |
NONE |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
2MB |
2MB |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
2MB |
4MB |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 1 & 2 |
|
4MB |
NONE |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 2 & 3 |
|
4MB |
4MB |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 2 & 3 |
|
Note: Pins designated are in the closed position. | |||||
|
PARALLEL PORT SELECT | ||||
|
Port |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
27128 |
On |
Off |
On |
Off |
|
27355 |
On |
Off |
Off |
On |
|
27512 |
Off |
On |
Off |
On |
|
I/O RECOVERY RATE CONFIGURATION | ||||
|
Rate |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
0 |
Off |
Off |
Off |
Off |
|
1 |
Off |
Off |
Off |
On |
|
2 |
Off |
Off |
On |
Off |
|
3 |
Off |
Off |
On |
On |
|
4 |
Off |
On |
Off |
Off |
|
5 |
Off |
On |
Off |
On |
|
6 |
Off |
On |
On |
Off |
|
7 |
Off |
On |
On |
On |
|
8 |
On |
Off |
Off |
Off |
|
9 |
On |
Off |
Off |
On |
|
10 |
On |
Off |
On |
Off |
|
11 |
On |
Off |
On |
On |
|
12 |
On |
On |
Off |
Off |
|
13 |
On |
On |
Off |
On |
|
14 |
On |
On |
On |
Off |
|
15 |
On |
On |
On |
On |
