YOUNG MICRO SYSTEMS, INC.
VEGA MERCURY PENTIUM PCI
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256/512KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI bus slots (3), PS/2 mouse port |
|
NPU Options |
None |
|

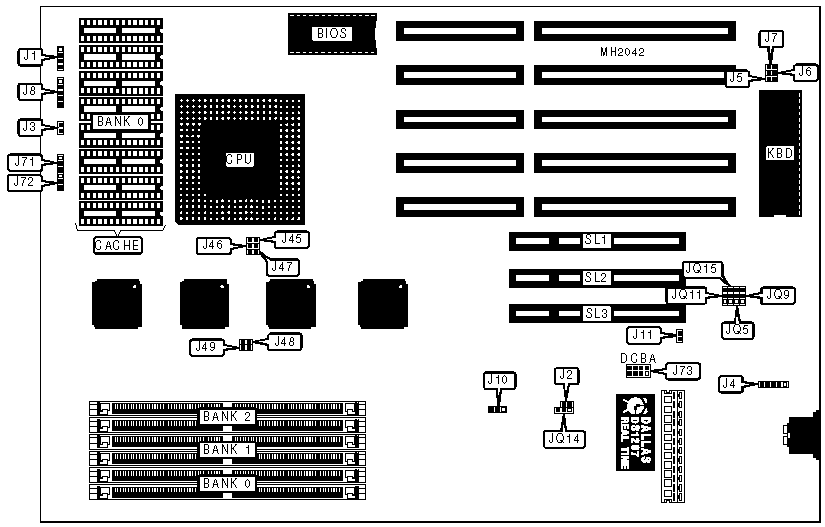

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J1 |
Power LED & keylock |
J8 |
|
Reset switch |
J3 |
32-bit PCI bus |
SL1, SL2, SL3 |
|
PS/2 mouse connector |
J4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory normal operation |
J2 |
Open |
|
CMOS memory clear |
J2 |
Closed | |
|
» |
Factory configured - do not alter |
J5 |
Open |
|
» |
Factory configured - do not alter |
J6 |
Open |
|
» |
Factory configured - do not alter |
J7 |
Open |
|
» |
Flash BIOS write protect enabled |
J10 |
pins 1 & 2 closed |
|
» |
Flash BIOS write protect disabled |
J10 |
pins 2 & 3 closed |
|
» |
Flash BIOS programming normal mode |
J11 |
Open |
|
Flash BIOS programming flash EPROM |
J11 |
Closed | |
|
» |
Factory configured - do not alter |
J45 |
Open |
|
» |
Factory configured - do not alter |
J46 |
Open |
|
» |
Factory configured - do not alter |
J47 |
Open |
|
» |
Factory configured - do not alter |
J48 |
Closed |
|
» |
Factory configured - do not alter |
J49 |
Closed |
|
» |
Factory configured - do not alter |
J72 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
JQ5 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
JQ9 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
JQ11 |
pins 2 & 3 closed |
|
» |
PCI IRQ trigger type select inverted |
JQ14 |
pins 1 & 2 closed |
|
PCI IRQ trigger type select standard |
JQ14 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JQ15 |
pins 2 & 3 closed |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
1MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
8MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
32MB |
(2) 2M x 36 |
(1) 2M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(8) 32K x 8 |
|
512KB |
(8) 64K x 8 |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
J71 |
|
256KB |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
|
PCI INTERRUPT CONFIGURATION | ||||
|
Interrupt |
J73/A |
J73/B |
J73/C |
J73/D |
|
INT A |
Closed |
Open |
Open |
Open |
|
INT B |
Open |
Closed |
Open |
Open |
|
INT C |
Open |
Open |
Closed |
Open |
|
INT D |
Open |
Open |
Open |
Closed |
