UNIDENTIFIED

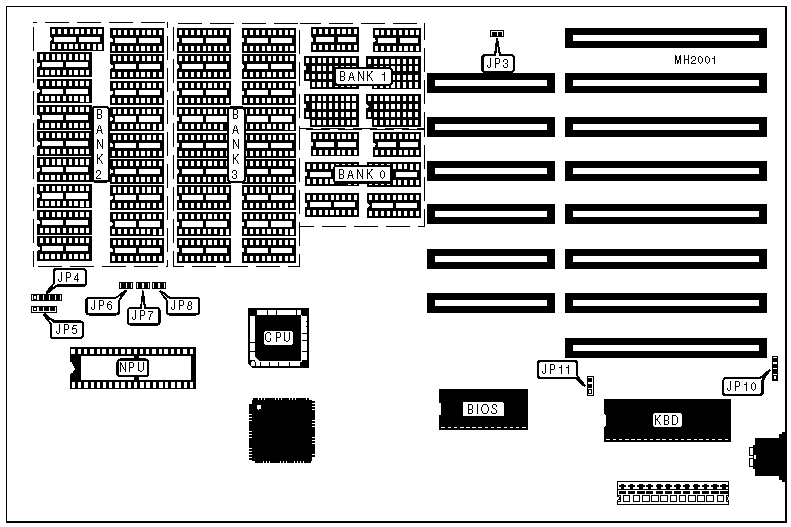

SUPER 286/16
|
Processor |
80286 |
|
Processor Speed |
12/16/20MHz |
|
Chip Set |
Acer |
|
Max. Onboard DRAM |
4MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
JP4 |
Reset switch |
JP7 |
|
Speaker |
JP5 |
Turbo switch |
JP8 |
|
Turbo LED |
JP6 |
External battery |
JP10 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Parity enabled |
JP3 |
Open |
|
Parity disabled |
JP3 |
Closed | |
|
» |
Monitor type select color |
JP11 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
JP11 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||||||
|
Size |
Bank 0 |
Parity 0 |
Bank 1 |
Parity 1 |
Bank 2 |
Bank 3 |
|
512KB |
(4) 44256 |
(4) 41256 |
NONE |
NONE |
NONE |
NONE |
|
640KB |
(4) 44256 |
(2) 41256 |
(4) 4464 |
(2) 4164 |
NONE |
NONE |
|
1MB |
(4) 44256 |
(2) 41256 |
(4) 44256 |
(2) 41256 |
NONE |
NONE |
|
2MB |
NONE |
NONE |
NONE |
NONE |
(18) 411000 |
NONE |
|
4MB |
NONE |
NONE |
NONE |
NONE |
(18) 411000 |
(18) 411000 |
