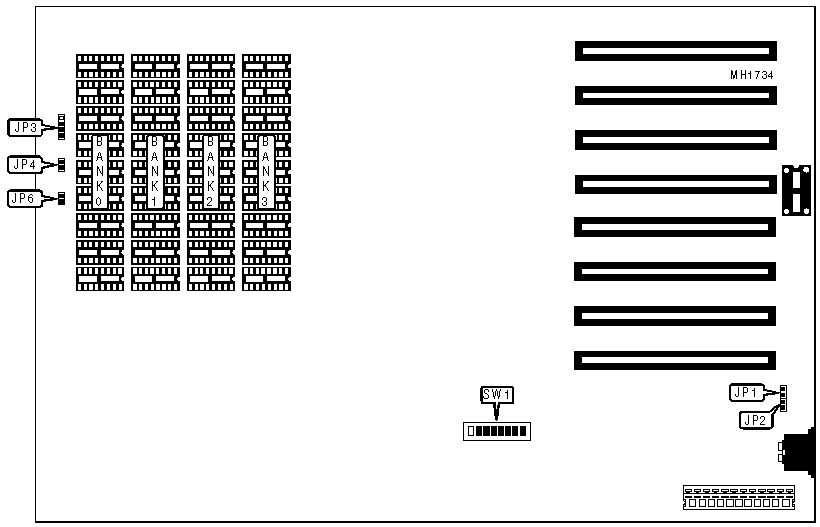

UNIDENTIFIED
TURBO 10-V01
|
Processor |
8088 (Exact location unknown) |
|
Processor Speed |
4.77/10MHz |
|
Chip Set |
Unknown |
|
Max. Onboard DRAM |
640KB |
|
Cache |
None |
|
BIOS |
Unknown |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
8087 (Exact location unknown) |
|
CONNECTIONS | |
|
Purpose |
Location |
|
Turbo switch |
JP5 |
|
Note:The location of JP5 is unknown. | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
|
» |
Factory configured - do not alter |
SW1/switch 1 |
Off |
|
» |
NPU enabled |
SW1/switch 2 |
Off |
|
NPU disabled |
SW1/switch 2 |
On | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
256K |
(9) 41256 |
NONE |
NONE |
NONE |
|
512K |
(9) 41256 |
(9) 41256 |
NONE |
NONE |
|
576K |
(9) 41256 |
(9) 41256 |
(9) 4164 |
NONE |
|
640K |
(9) 41256 |
(9) 41256 |
(9) 4164 |
(9) 4164 |
|
MONITOR TYPE SELECTION | ||
|
Type |
SW1/switch 5 |
SW1/switch 6 |
|
Enhanced graphics |
On |
On |
|
Color 40 x 20 |
Off |
On |
|
Color 80 x 25 |
On |
Off |
|
Monochrome |
Off |
Off |
|
FLOPPY DRIVE CONFIGURATION | ||
|
Number of drives |
SW1/switch 7 |
SW1/switch 8 |
|
1 |
On |
On |
|
2 |
Off |
On |
|
3 |
On |
Off |
|
4 |
Off |
Off |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The settings and function of SW1/switch 3 and switch 4 are unknown. The functions of JP1, JP2, JP3, JP4, and JP6 on this board are unknown |
