Processor	80386SX/CX486SLC
Processor Speed	16/20/25/33MHz
Chip Set	None
Max. Onboard DRAM	16MB
SRAM Cache	None
BIOS	AMI
Dimensions	216mm x 170mm
I/O Options	None
NPU Options	80387SX

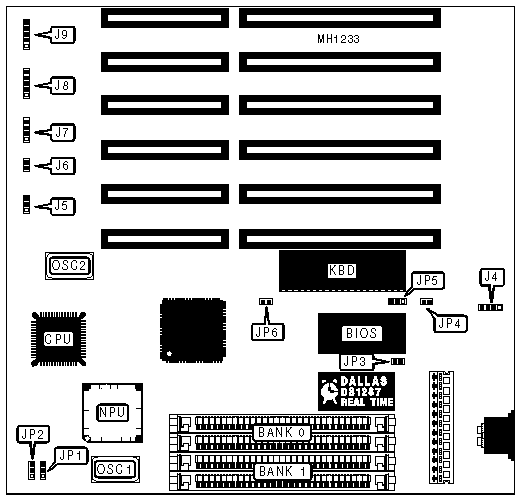

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J4	Turbo switch & LED	J8
Reset switch	J6	Power LED & keylock	J9
Speaker	J7

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	ADS signal delay disabled	J5	pins 2 & 3 closed
	ADS signal delay enabled	J5	pins 1 & 2 closed
»	NPU mode select synchronous with CPU	JP2	pins 1 & 2 closed
	NPU mode select asynchronous	JP2	pins 2 & 3 closed
»	RTC type select 146816	JP3	open
	RTC type select DS1287	JP3	closed
»	Monitor type select monochrome	JP4	open
	Monitor type select color	JP4	closed
»	Parity check enabled	JP6	open
	Parity check disabled	JP6	closed

BUS CLOCK CONFIGURATION
CPU Speed	JP1	JP5
33MHz	pins 2 & 3 closed	pins 2 & 3 closed
25MHz	pins 1 & 2 closed	pins 1 & 2 closed
20MHz	pins 2 & 3 closed	pins 1 & 2 closed
16MHz	pins 1 & 2 closed	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2) 256K x 9	NONE
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE
16MB	(2) 4M x 9	(2) 4M x 9
