Processor	80386SX/80386DX
Processor Speed	25/33/40MHz
Chip Set	VLSI
Max. Onboard DRAM	32MB
Cache	64KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387/3167

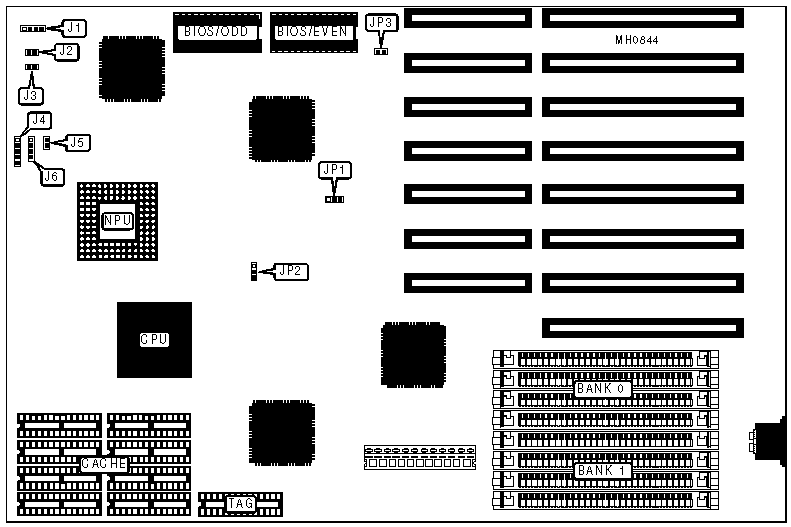

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Power LED & keylock	J4
Turbo LED	J2	Reset switch	J5
Turbo switch	J3	Speaker	J6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	JP1	Closed
	Monitor type select monochrome	JP1	Open
»	BIOS shadow enabled	JP2	Closed
	BIOS shadow disabled	JP2	Open
»	Factory configured - do not alter	JP3	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	TAG
64KB	(8) 8K x 8	(1) 8K x 8
256KB	(8) 64K x 4	(1) 64K x 4
