Processor	80286
Processor Speed	10/12MHz
Chip Set	G-2
Max. Onboard DRAM	4MB
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

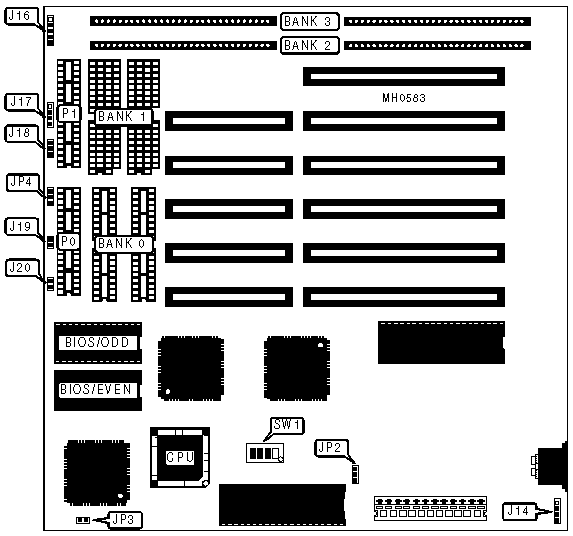

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo switch	J4	Speaker	J17
External battery	J14	Turbo LED	J19
Power LED & keylock	J16	Reset switch	J20

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	CPU speed select [CTRL][ALT][+] = fast, [CTRL][ALT][-] = slow	J4	pins 1 & 2 closed
	CPU speed select fast	J4	pins 2 & 3 closed
»	NPU mode select synchronous with CPU	JP2	pins 2 & 3 closed
	NPU mode select asynchronous with CPU	JP2	pins 1 & 2 closed
»	Parity check enabled	JP3	Closed
	Parity check disabled	JP3	Open
»	DRAM select 0 wait states	J18	pins 2 & 3 closed
	DRAM select 1 wait state	J18	Open
	DRAM wait states select [CTRL][ALT][0] = 0 [CTRL][ALT][1] = 1	J18	pins 1 & 2 closed
»	Monitor type select color	SW1/1	On
	Monitor type select monochrome	SW1/1	Off

DRAM CONFIGURATION
Size	Bank 0	P-0	Bank 1	P-1	Bank 2	Bank 3
512KB	(4) 44256	(2) 41256	NONE	NONE	NONE	NONE
640KB	(4) 44256	(2) 41256	(4) 4464	(2) 4164	NONE	NONE
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	NONE	NONE
2MB	NONE	NONE	NONE	NONE	(2) 1M x 9	NONE
4MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 1M x 9

DRAM SWITCH CONFIGURATION
Size	SW1/2	SW1/3	SW1/4
512KB	On	On	Off
640KB	On	Off	On
1MB	On	Off	Off
2MB	Off	Off	On
4MB	Off	Off	Off
