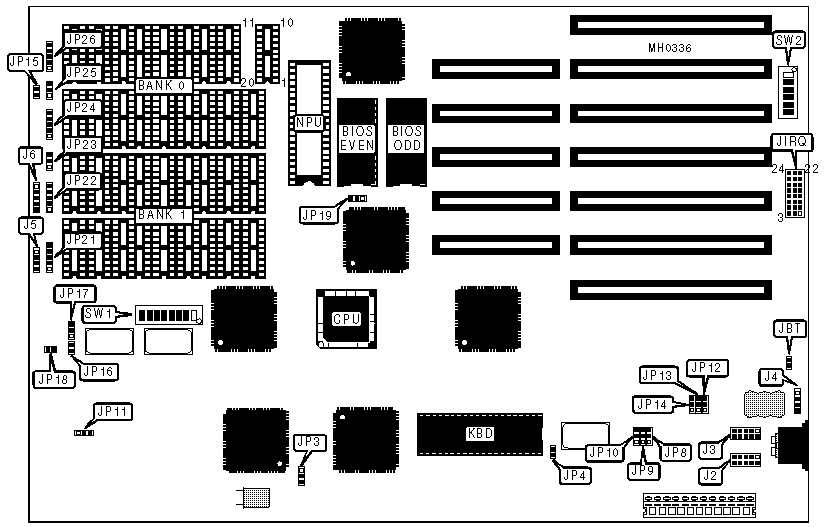

UNIDENTIFIED
WIZ-286 KW-211
| Processor | 80286 |
| Processor Speed | 12MHz |
| Chip Set | SMD |
| Max. Onboard DRAM | 4MB |
| Cache | None |
| BIOS | AMI |
| Dimensions | 330mm x 218mm |
| I/O Options | Serial ports (2) |
| NPU Options | 80287 |

| CONNECTIONS | |||
| Purpose | Location | Purpose | Location |
| Serial port 2 | J2 | Power LED & keylock | J6 |
| Serial port 1 | J3 | Reset switch | JP15 |
| External battery | J4 | Turbo LED | JP16 |
| Speaker | J5 | Turbo switch | JP18 |
| USER CONFIGURABLE SETTINGS | |||
| Function | Jumper/Switch | Position | |
| » | CMOS memory normal operation | JBT | Closed |
| CMOS memory clear | JBT | Open | |
| » | Factory configured - do not alter | JP3 | N/A |
| » | Monitor type select color | JP4 | Closed |
| Monitor type select monochrome | JP4 | Open | |
| » | Factory configured - do not alter | JP11 | pins 2 & 3 closed |
| BIOS type select EPROM | JP11 | pins 1 & 2 closed | |
| » | Factory configured - do not alter | JP17 | pins 2 & 3 closed |
| CPU speed select switchable at turbo switch | JP17 | pins 1 & 2 closed | |
| » | Factory configured - do not alter | JP19 | pins 2 & 3 closed |
| BIOS ROM select 27256 | JP19 | pins 1 & 2 closed | |
| » | Factory configured - do not alter | SW1/1 | N/A |
| » | Factory configured - do not alter | SW1/5 | N/A |
| » | Bus speed select ATCLK/1 | SW1/6 | Off |
| Bus speed select ATCLK/2 | SW1/6 | On | |
| » | DMA speed select CPU/1 | SW1/7 | Off |
| DMA speed select CPU/2 | SW1/7 | On | |
| » | Factory configured - do not alter | SW1/8 | N/A |
| DRAM CONFIGURATION | ||
| Size | Bank 0 | Bank 1 |
| 512KB | (18) 41256 | NONE |
| 640KB | (18) 41256 | (18) 4164 |
| 1MB | (18) 41256 | (18) 41256 |
| 2MB | (18) 411000 | NONE |
| 4MB | (18) 411000 | (18) 411000 |
| Note:41256 and 4164 chips are placed in DIP socket pins 1 through 8 and 13 through 20. 411000 chips are placed in DIP socket pins 2 through 19. See upper right corner DIP socket on diagram for orientation. | ||
| DRAM SWITCH CONFIGURATION | |||
| Size | SW1/2 | SW1/3 | SW1/4 |
| 512KB | N/A | Off | Off |
| 640KB | Off | On | Off |
| 1MB | On | On | Off |
| 2MB | N/A | Off | On |
| 4MB | N/A | On | On |
| DRAM JUMPER CONFIGURATION | ||||||
| Size | JP21 | JP22 | JP23 | JP24 | JP25 | JP26 |
| 512KB | 2 & 3, 4 & 5 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 |
| 640KB | 2 & 3, 4 & 5 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 |
| 1MB | 2 & 3, 4 & 5 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 | 2 & 3 | 2 & 3, 4 & 5 |
| 2MB | 1 & 2, 3 & 4 | 1 & 2, 3 & 4 | 1 & 2 | 1 & 2, 3 & 4 | 1 & 2 | 1 & 2, 3 & 4 |
| 4MB | 1 & 2, 3 & 4 | 1 & 2, 3 & 4 | 1 & 2 | 1 & 2, 3 & 4 | 1 & 2 | 1 & 2, 3 & 4 |
| Note:Pins designated should be in the closed position. | ||||||
| IRQ CONFIGURATION | ||
| Line | IRQ for Serial port 1 | IRQ for Serial port 2 |
| IRQ3 | pins 2 & 3 closed | pins 1 & 2 closed |
| IRQ4 | pins 5 & 6 closed | pins 4 & 5 closed |
| IRQ5 | pins 8 & 9 closed | pins 7 & 8 closed |
| IRQ9 | pins 11 & 12 closed | pins 10 & 11 closed |
| IRQ10 | pins 14 & 15 closed | pins 13 & 14 closed |
| IRQ11 | pins 17 & 18 closed | pins 16 & 17 closed |
| IRQ12 | pins 20 & 21 closed | pins 19 & 20 closed |
| IRQ15 | pins 23 & 24 closed | pins 22 & 23 closed |
| SERIAL PORT 1 CONFIGURATION | |||
| Setting | JP8 | JP9 | JP10 |
| Ready signal normal | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed |
| Ready signal forced active | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed |
| SERIAL PORT 2 CONFIGURATION | |||
| Setting | JP8 | JP9 | JP10 |
| Ready signal normal | pins 1 & 2 closed | pins 1 & 2 closed | pins 2 & 3 closed |
| Ready signal forced active | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed |
| SERIAL PORT 1 CONFIGURATION | |||
| I/O Address | SW2/1 | SW2/2 | SW2/3 |
| COM1 | On | On | Off |
| COM2 | On | Off | On |
| COM3 | On | Off | Off |
| COM4 | Off | On | On |
| COM5 | Off | On | Off |
| COM6 | Off | Off | On |
| COM7 | Off | Off | Off |
| SERIAL PORT 2 CONFIGURATION | |||
| I/O Address | SW2/4 | SW2/5 | SW2/6 |
| COM2 | On | On | Off |
| COM3 | On | Off | On |
| COM4 | On | Off | Off |
| COM5 | Off | On | On |
| COM6 | Off | On | Off |
| COM7 | Off | Off | On |
| COM8 | Off | Off | Off |
