TOTEM TECHNOLOGY CO., LTD.

TM-586 IV2

Device Type

Mainboard

Processor

CX 6X86/CX 686MX/AM 5K86/AM K5/AM K6/Pentium/Pentium MMX/

Processor Speed

75/90/100/120/133/150/166/200/233MHz

Chip Set

Intel 430VX

Maximum Onboard Memory

128MB (EDO & SDRAM supported)

Cache

256/512KB

BIOS

Award

Dimensions

230mm x 220mm

I/O Options

32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)

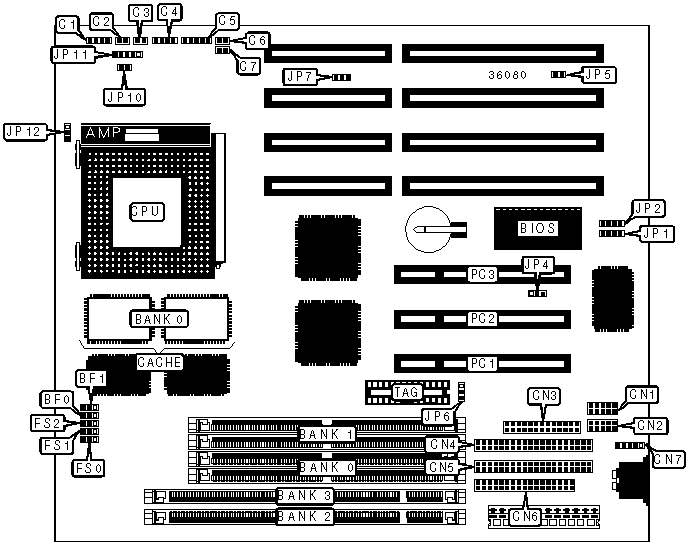

CONNECTIONS

Purpose

Location

Purpose

Location

IR connector

C1

Parallel port

CN3

IDE interface LED

C2

IDE interface 1

CN4

Reset switch

C3

IDE interface 2

CN5

Speaker

C4

Floppy drive interface

CN6

Power LED & keylock

C5

PS/2 mouse interface

CN7

Green PC connector

C6

USB connector

JP1

Turbo LED

C7

USB connector

JP2

Serial port 1

CN1

32-bit PCI slots

PC1 - PC3

Serial port 2

CN2





USER CONFIGURABLE SETTINGS

Function

Label

Position



Flash BIOS voltage select 12v

JP4

Pins 2 & 3 closed



Flash BIOS voltage select 5v

JP4

Pins 1 & 2 closed

»

CMOS memory normal operation

JP5

Open



CMOS memory clear

JP5

Closed

»

Factory configured - do not alter

JP7

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

Bank 3

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

DIMM CONFIGURATION

Size

Bank 2

Bank 3

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CACHE JUMPER CONFIGURATION

Size

JP6

256KB

Pins 1 & 2 closed

512KB

Pins 2 & 3 closed

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

120MHz

50MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

133MHz

55MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

150MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

166MHz

66MHz

2x

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

166MHz

60MHz

2.5x

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

200MHz

66MHz

2.5x

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

233MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM 5K86)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

75MHz

50MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

75MHz

50MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

120MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

133MHz

66MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

166MHz

66MHz

1.75x

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

166MHz

66MHz

2.5x

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

75MHz

50MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

120MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

133MHz

66MHz

2x

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

BF0

BF1

FS0

FS1

FS2

166MHz

66MHz

2.5x

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

233MHz

66MHz

3.5x

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP10

Single voltage

Closed

Dual voltage

Open

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP11

JP12

3.38v

Pins 1 & 2 closed

Pins 2 & 3 closed

3.45v

Pins 2 & 3 closed

Pins 2 & 3 closed

CPU VOLTAGE SELECTION (DUAL)

Voltage

JP11

JP12

2.9v

Pins 4 & 5 closed

Pins 1 & 2 closed
