SOLTEK COMPUTER, INC.
SL-61B
|
Device Type |
Mainboard |
|
Processor |
Pentium II |
|
Processor Speed |
233/266/300/333MHz |
|
Chip Set |
Intel 440LX |
|
Maximum Onboard Memory |
1GB (EDO & SDRAM supported) |
|
Cache |
256/512KB (located on the Pentium II CPU) |
|
BIOS |
Award |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector (2), AGP slot, ATX power connector, green PC connector |
|
Dimensions |
330mm x 220mm |
|

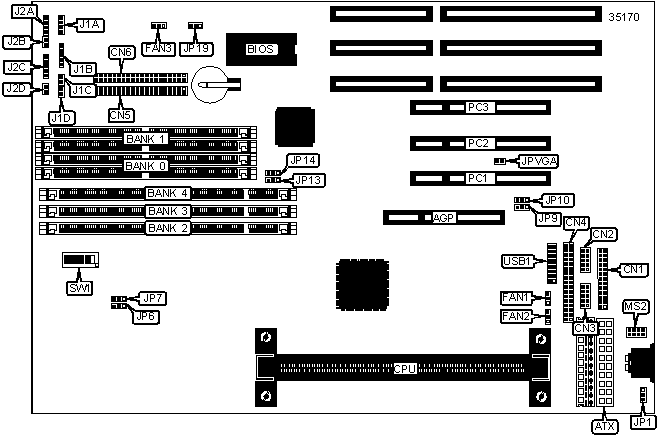

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
IDE interface LED |
J1A |
|
ATX power connector |
ATX |
IR connector |
J1B |
|
Parallel port |
CN1 |
Power switch |
J1C |
|
Serial port 1 |
CN2 |
Green PC connector |
J1D |
|
Serial port 2 |
CN3 |
Speaker |
J2A |
|
Floppy drive interface |
CN4 |
Reset switch |
J2B |
|
IDE interface 2 |
CN5 |
Power LED & Keylock |
J2C |
|
IDE interface 1 |
CN6 |
Turbo LED |
J2D |
|
Power fan connector |
FAN1 |
32-bit PCI slots |
PC1 - PC3 |
|
CPU fan connector |
FAN2 |
PS/2 mouse interface |
MS2 |
|
Chassis fan connector |
FAN3 |
USB connector |
USB1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP19 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP19 |
Pins 2 & 3 closed | |
|
» |
Normal VGA card enabled |
JPVGA |
Closed |
|
Special VGA card enabled |
JPVGA |
Open | |
|
DIP SWITCH SELECTION | |||
|
Function |
JP6 |
JP7 | |
| » |
DIP SW1 enabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
BIOS setting enabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
USB PORT SELECTION | |||
|
Function |
JP9 |
JP10 | |
| » |
Redirect all USB ports to USB connector |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Redirect one USB to AGP port |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1MB x 36 |
None |
|
16MB |
(2) 1MB x 36 |
(2) 1MB x 36 |
|
16MB |
(2) 2MB x 36 |
None |
|
24MB |
(2) 2MB x 36 |
(2) 1MB x 36 |
|
32MB |
(2) 2MB x 36 |
(2) 2MB x 36 |
|
32MB |
(2) 4MB x 36 |
None |
|
40MB |
(2) 4MB x 36 |
(2) 1MB x 36 |
|
48MB |
(2) 4MB x 36 |
(2) 2MB x 36 |
|
64MB |
(2) 4MB x 36 |
(2) 4MB x 36 |
|
64MB |
(2) 8MB x 36 |
None |
|
72MB |
(2) 8MB x 36 |
(2) 1MB x 36 |
|
80MB |
(2) 8MB x 36 |
(2) 2MB x 36 |
|
96MB |
(2) 8MB x 36 |
(2) 4MB x 36 |
|
SIMM CONFIGURATION (CONT.) | ||
|
Size |
Bank 0 |
Bank 1 |
|
128MB |
(2) 8MB x 36 |
(2) 8MB x 36 |
|
128MB |
(2) 16MB x 36 |
None |
|
136MB |
(2) 16MB x 36 |
(2) 1MB x 36 |
|
144MB |
(2) 16MB x 36 |
(2) 2MB x 36 |
|
160MB |
(2) 16MB x 36 |
(2) 4MB x 36 |
|
192MB |
(2) 16MB x 36 |
(2) 8MB x 36 |
|
256MB |
(2) 16MB x 36 |
(2) 16MB x 36 |
|
256MB |
(2) 32MB x 36 |
None |
|
264MB |
(2) 32MB x 36 |
(2) 1MB x 36 |
|
272MB |
(2) 32MB x 36 |
(2) 2MB x 36 |
|
288MB |
(2) 32MB x 36 |
(2) 4MB x 36 |
|
320MB |
(2) 32MB x 36 |
(2) 8MB x 36 |
|
384MB |
(2) 32MB x 36 |
(2) 16MB x 36 |
|
512MB |
(2) 32MB x 36 |
(2) 32MB x 36 |
|
Note: Bank 0 and Bank 4 cannot be used together. | ||
|
SIMM VOLTAGE SELECTION | |||
|
Voltage |
JP13 |
JP14 | |
| » |
5v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
3.3v |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
DIMM CONFIGURATION | |||
|
Size |
Bank 2 |
Bank 3 |
Bank 4 |
|
8MB |
(1) 1MB x 64 |
None |
None |
|
16MB |
(1) 1MB x 64 |
(1) 1MB x 64 |
None |
|
16MB |
(1) 2MB x 64 |
None |
None |
|
24MB |
(1) 1MB x 64 |
(1) 1MB x 64 |
(1) 1MB x 64 |
|
24MB |
(1) 2MB x 64 |
(1) 1MB x 64 |
None |
|
32MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
None |
|
32MB |
(1) 4MB x 64 |
None |
None |
|
40MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 1MB x 64 |
|
48MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 2MB x 64 |
|
40MB |
(1) 4MB x 64 |
(1) 1MB x 64 |
None |
|
48MB |
(1) 4MB x 64 |
(1) 2MB x 64 |
None |
|
64MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
None |
|
64MB |
(1) 8MB x 64 |
None |
None |
|
72MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 1MB x 64 |
|
80MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 2MB x 64 |
|
96MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 4MB x 64 |
|
72MB |
(1) 8MB x 64 |
(1) 1MB x 64 |
None |
|
80MB |
(1) 8MB x 64 |
(1) 2MB x 64 |
None |
|
96MB |
(1) 8MB x 64 |
(1) 4MB x 64 |
None |
|
128MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
None |
|
128MB |
(1) 16MB x 64 |
None |
None |
|
DIMM CONFIGURATION (CONT.) | |||
|
Size |
Bank 2 |
Bank 3 |
Bank 4 |
|
160MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 4MB x 64 |
|
192MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 8MB x 64 |
|
136MB |
(1) 16MB x 64 |
(1) 1MB x 64 |
None |
|
144MB |
(1) 16MB x 64 |
(1) 2MB x 64 |
None |
|
160MB |
(1) 16MB x 64 |
(1) 4MB x 64 |
None |
|
192MB |
(1) 16MB x 64 |
(1) 8MB x 64 |
None |
|
256MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
None |
|
256MB |
(1) 32MB x 64 |
None |
None |
|
288MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 4MB x 64 |
|
320MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 8MB x 64 |
|
384MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 16MB x 64 |
|
264MB |
(1) 32MB x 64 |
(1) 1MB x 64 |
None |
|
272MB |
(1) 32MB x 64 |
(1) 2MB x 64 |
None |
|
288MB |
(1) 32MB x 64 |
(1) 4MB x 64 |
None |
|
320MB |
(1) 32MB x 64 |
(1) 8MB x 64 |
None |
|
384MB |
(1) 32MB x 64 |
(1) 16MB x 64 |
None |
|
512MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
None |
|
576MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 8MB x 64 |
|
640MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 16MB x 64 |
|
768MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 32MB x 64 |
|
Note: Banks are interchangeable. Bank 0 and Bank 4 cannot be used together. | |||
|
CPU SPEED SELECTION | ||||||||
|
CPU Speed |
Clock Speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
On |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
Off |
|
300MHz |
66MHz |
4.5x |
Off |
On |
Off |
On |
Off |
Off |
|
333MHz |
66MHz |
5x |
Off |
Off |
On |
On |
Off |
Off |
