Processor	Pentium II
Processor Speed	200/233/266/300/333/366/400MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	1GB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB (located on Pentium II CPU)
BIOS	AMI
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot
NPU Options	None

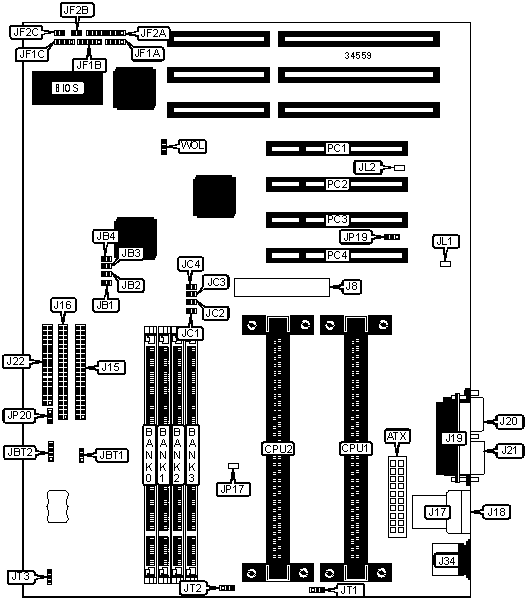

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	IDE interface LED	JF1A
AGP slot	J8	Power LED & keylock	JF1B
IDE interface 1	J15	Speaker	JF1C
IDE interface 2	J16	IR connector	JF2A
USB connector	J17	Soft off power supply	JF2B
USB connector	J18	Reset switch	JF2C
Parallel port	J19	Chassis intrusion connector	JL1
Serial port 1	J20	CPU fan	JT1
Serial port 2	J21	CPU fan	JT2
Floppy drive interface	J22	Thermal control fan	JT3
PS/2 mouse port	J34	32-bit PCI slots	PC1 – PC4
External battery	JBT2	Wake on LAN connector	WOL

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JA4	Unidentified
»	CMOS memory normal operation	JBT1	Pins 1 & 2 closed
	CMOS memory clear	JBT1	Pins 2 & 3 closed
»	Factory configured - do not alter	JC4	Open
»	Factory configured - do not alter	JL2	Open
»	Factory configured - do not alter	JP17	Pins 2 & 3 closed
»	SMI select APIC SMI	JP19	Pins 1 & 2 closed
	SMI select PIIX4 SMI	JP19	Pins 2 & 3 closed
»	Power on/off select save PD state	JP20	Pins 2 & 3 closed
	Power on/off select PIIX4	JP20	Pins 1 & 2 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(1) 1M x 64	None	None	None
16MB	(1) 2M x 64	None	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None	None
24MB	(1) 2M x 64	(1) 1M x 64	None	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	None
32MB	(1) 4M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
32MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
40MB	(1) 4M x 64	(1) 1M x 64	None	None
48MB	(1) 4M x 64	(1) 2M x 64	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 8M x 64	None	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None	None

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
72MB	(1) 8M x 64	(1) 1M x 64	None	None
80MB	(1) 8M x 64	(1) 2M x 64	None	None
96MB	(1) 8M x 64	(1) 4M x 64	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None	None	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
1024MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
Speed	JB1	JB2	JB3	JB4	JC1	JC2	JC3
200MHz	Closed	Open	Closed	Closed	Open	Open	Open
233MHz	Open	Open	Closed	Closed	Open	Open	Open
266MHz	Closed	Closed	Open	Closed	Open	Open	Open
300MHz	Open	Closed	Open	Closed	Open	Open	Open
333MHz	Closed	Open	Open	Closed	Open	Open	Open
366MHz	Open	Open	Open	Closed	Open	Open	Open
400MHz	Closed	Closed	Closed	Open	Open	Open	Open

MISCELLANEOUS TECHNICAL NOTE

The CPU fan will automatically turn on when the CPU temperature exceeds the user defined temperature.
