SIEMENS NIXDORF INFORMATIONSSYSTEME AG

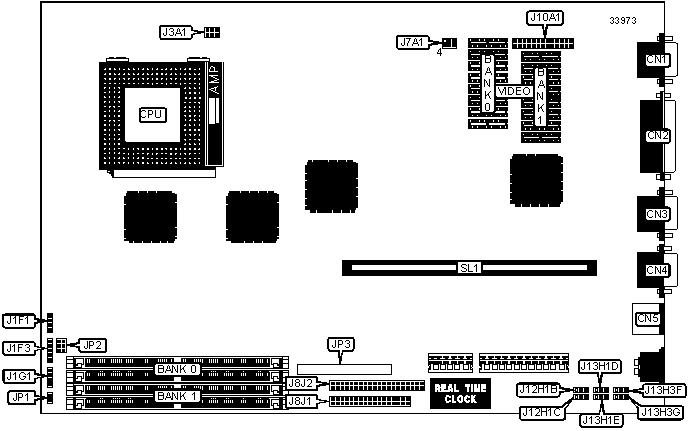

SYSTEM BOARD PCD-5H
|
Processor |
Pentium |
|
Processor Speed |
60MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
128MB |
|
Maximum Video Memory |
2MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, VGA port, riser slot |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
IDE interface LED |
J1G1 |
|
Parallel port |
CN2 |
Chassis fan power |
J3A1 |
|
Serial port 2 |
CN3 |
Floppy drive interface |
J8J1 |
|
Serial port 1 |
CN4 |
IDE interface |
J8J2 |
|
PS/2 mouse port |
CN5 |
VESA feature connector |
J10A1 |
|
Speaker |
J1F1 |
Riser slot |
SL1 |
|
Power LED |
J1F3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
? |
Factory configured - do not alter |
JP1 |
Unidentified |
|
? |
Factory configured - do not alter |
JP2 |
Unidentified |
|
? |
Factory configured - do not alter |
JP3 |
Unidentified |
|
? |
Factory configured - do not alter |
J7A1 |
Pins 5 & 6 closed |
|
? |
Flash BIOS normal operation |
J12H1B |
Pins 2 & 3 closed |
|
Flash BIOS recovery mode |
J12H1B |
Pins 1 & 2 closed | |
|
? |
Flash BIOS write protect enabled |
J12H1C |
Pins 1 & 2 closed |
|
Flash BIOS write protect disabled |
J12H1C |
Pins 2 & 3 closed | |
|
? |
CMOS memory normal operation |
J13H1D |
Pins 1 & 2 closed |
|
CMOS memory clear |
J13H1D |
Pins 2 & 3 closed | |
|
? |
Factory configured - do not alter |
J13H1E |
Unidentified |
|
? |
Monitor type select color |
J13H3F |
Pins 2 & 3 closed |
|
Monitor type select monochrome |
J13H3F |
Pins 1 & 2 closed | |
|
? |
Setup menu access enabled |
J13H3G |
Pins 1 & 2 closed |
|
Setup menu access disabled |
J13H3G |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION |
|
Note: 256KB cache is factory installed and is not configurable. The location is unidentified. |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
1MB |
None |
|
2MB |
1MB |
1MB |
|
Note: The size of the video memory chips is unidentified. | ||
