SUPER MICRO
P5STE
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
768MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Buzzer connector |
J13 |
Parallel port |
J53 |
|
Chassis fan power |
J14 |
Floppy drive interface |
J54 |
|
Overheat LED |
J15 |
IDE interface 1 |
J70 |
|
Chassis fan power |
J18 |
IDE interface 2 |
J71 |
|
Power LED & keylock |
J32 |
Legacy connector |
J85 |
|
IDE interface LED |
J34 |
PS/2 mouse interface |
J86 |
|
Reset switch |
J35 |
External battery |
JP30 |
|
Speaker |
J39 |
Turbo LED |
JP32 |
|
USB connector |
J44 |
IR connector |
JP67 |
|
USB connector |
J45 |
IR connector |
JP68 |
|
Serial port 2 |
J51 |
32-bit PCI slots |
PC1 - PC4 |
|
Serial port 1 |
J52 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J12 |
Unidentified |
|
» |
Factory configured - do not alter |
J15 |
Unidentified |
|
» |
Factory configured - do not alter |
J28 |
Closed |
|
» |
Factory configured - do not alter |
J36 |
Unidentified |
|
» |
Factory configured - do not alter |
J37 |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J38 |
Unidentified |
|
» |
Factory configured - do not alter |
J41 |
Open |
|
» |
CMOS memory normal operation |
J42 |
Pins 1 & 2 closed |
|
CMOS memory clear |
J42 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
J43 |
Open |
|
» |
ISA CLK = PCI CLK/4 |
J67 |
Pins 2 & 3 closed |
|
ISA CLK = PCI CLK/3 |
J67 |
Pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
J75 |
Unidentified |
|
» |
Factory configured - do not alter |
J76 |
Unidentified |
|
» |
Factory configured - do not alter |
J77 |
Unidentified |
|
» |
Factory configured - do not alter |
J113 |
Unidentified |
|
» |
Factory configured - do not alter |
JP15 |
Unidentified |
|
» |
Factory configured - do not alter |
JP62 |
Unidentified |
|
» |
Factory configured - do not alter |
JP63 |
Unidentified |
|
» |
Factory configured - do not alter |
JP64 |
Unidentified |
|
» |
Factory configured - do not alter |
JP65 |
Unidentified |
|
» |
Factory configured - do not alter |
JP66 |
Unidentified |
|

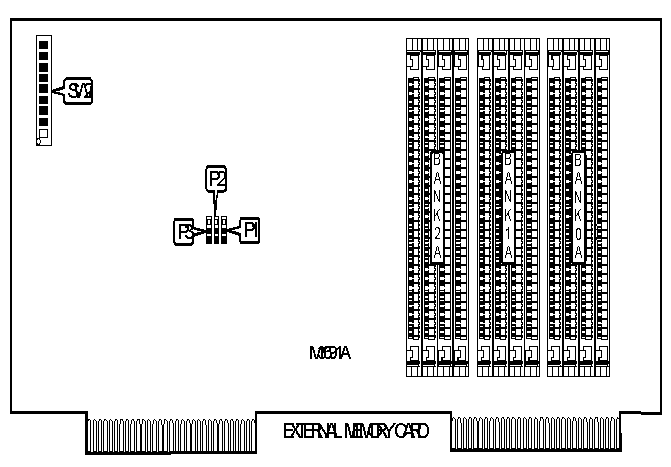

DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
56MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
88MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
104MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
None |
None |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
136MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
152MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
168MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
176MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
200MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
208MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 2M x 36 |
|
224MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
256MB |
(2) 32M x 36 |
None |
None |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
256MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
264MB |
(2) 32M x 36 |
(2) 1M x 36 |
None |
|
264MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 1M x 36 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
272MB |
(2) 32M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
272MB |
(2) 32M x 36 |
(2) 2M x 36 |
None |
|
272MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 32M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 32M x 36 |
(2) 4M x 36 |
None |
|
288MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 32M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
None |
|
320MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
None |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
None |
|
512MB |
(2) 32M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
768MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 32M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | |||
|
CACHE CONFIGURATION |
|
Note: Either 256KB or 512KB cache will be installed at the factory. |
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
J27 |
J29 |
J31 |
J40 |
|
75MHz |
50MHz |
1.5x |
Open |
Closed |
Closed |
Open |
|
90MHz |
60MHz |
1.5x |
Open |
Closed |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
Closed |
Open |
|
120MHz |
60MHz |
2x |
Closed |
Closed |
Open |
Open |
|
133MHz |
66MHz |
2x |
Closed |
Open |
Closed |
Open |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
Open |
Closed |
|
166MHz |
66MHz |
2.5x |
Closed |
Open |
Closed |
Closed |
|
180MHz |
60MHz |
3x |
Open |
Closed |
Open |
Closed |
|
200MHz |
66MHz |
3x |
Open |
Open |
Closed |
Closed |
|
CPU VOLTAGE SELECTION | ||
|
Voltage |
JP11 | |
|
2.5v |
Pins 2 & 3 closed | |
|
2.9v |
Open | |
| » |
3.3v |
Pins 1 & 2 closed |
|
THERMAL CONTROL SELECTION | ||
|
Turn on temperature |
Turn off temperature |
J1 |
|
57 |
51 |
Pins 1 & 2 closed |
|
62 |
58 |
Pins 2 & 3 closed |
|
69 |
65 |
Open |
|
Note: Temperature is in Celsius. | ||
