SIEMENS NIXDORF INFORMATIONSSYSTEME AG
S26361-D858
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
Microphone connector, audio input connector, game/MIDI port, parallel port, serial ports (2), PS/2 mouse port, floppy drive interface, IDE interfaces (2), wave table connector, PC extension, soft off power supply connector, CD audio input connector, CD-ROM connector, front panel connector, soft on/off switch connector, remote on connector, riser slot, cache slot |
|
NPU Options |
None |
|

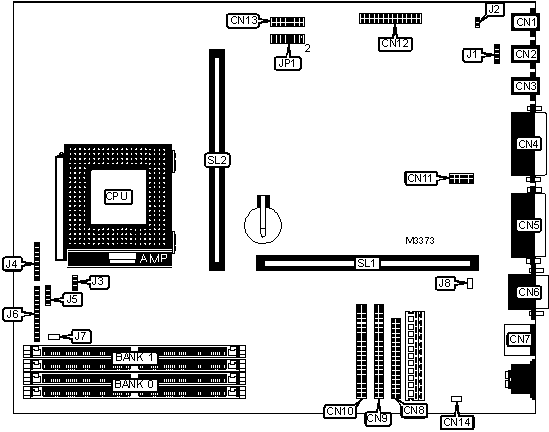

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Microphone connector (optional) |
CN1 |
PC extension (optional) |
CN13 |
|
Audio input connector (optional) |
CN2 |
Soft off power supply connector |
CN14 |
|
Speaker (optional) |
CN3 |
CD audio input connector (optional) |
J1 |
|
Game/MIDI port |
CN4 |
CD-ROM connector (optional) |
J2 |
|
Parallel port |
CN5 |
Chassis fan power |
J3 |
|
Serial port 1 |
CN6 |
Front panel connector |
J4 |
|
PS/2 mouse port |
CN7 |
Speaker |
J5 |
|
Floppy drive interface |
CN8 |
Front panel connector |
J6 |
|
IDE interface |
CN9 |
Soft on/off switch connector |
J7 |
|
IDE interface |
CN10 |
Remote on connector |
J8 |
|
Serial port 2 |
CN11 |
Riser slot |
SL1 |
|
Wave table connector |
CN12 |
Cache slot |
SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Flash BIOS write protect disabled |
JP1 pins 7 & 8 |
Open |
|
Flash BIOS write protect enabled |
JP1 pins 7 & 8 |
Closed | |
|
» |
Password enabled |
JP1 pins 9 & 10 |
Open |
|
Password disabled |
JP1 pins 9 & 10 |
Closed | |
|
» |
BIOS normal operation |
JP1 pins 11 & 12 |
Open |
|
BIOS recovery mode |
JP1 pins 11 & 12 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL2 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CPU SPEED SELECTION | ||||
|
Speed |
JP1 pins 1 & 2 |
JP1 pins 3 & 4 |
JP1 pins 5 & 6 |
JP1 pins 13 & 14 |
|
75MHz |
Closed |
Closed |
Open |
Open |
|
90MHz |
Closed |
Open |
Open |
Open |
|
100MHz |
Open |
Closed |
Open |
Open |
|
120MHz |
Closed |
Open |
Closed |
Open |
|
133MHz |
Open |
Closed |
Closed |
Open |
|
150MHz |
Closed |
Open |
Closed |
Closed |
|
166MHz |
Open |
Closed |
Closed |
Closed |
