Processor	80386DX/CX486DLC
Processor Speed	33/40MHz
Chip Set	ALI
Max. Onboard DRAM	32MB
Cache	32/128KB
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387DX

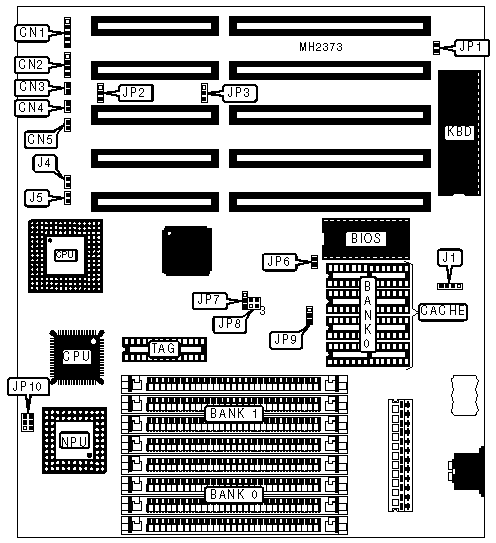

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	CN1	Turbo LED	CN4
Speaker	CN2	Reset switch	CN5
Turbo switch	CN3	External battery	J1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP1	Open
»	Factory configured - do not alter	JP2	Open
»	Factory configured - do not alter	JP10	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	TAG
32KB	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	(1) 8K x 8

CACHE JUMPER CONFIGURATION
Size	JP6	JP8	JP9
32KB	Open	Open	pins 2 & 3 closed
128KB	Closed	pins 1 & 2, 3 & 4 closed	pins 1 & 2 closed

CPU TYPE CONFIGURATION
Type	JP3	JP7
80386DX	pins 1 & 2 closed	pins 1 & 2 closed
CX486DLC	pins 2 & 3 closed	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed	J4	J5
33MHz	Open	Closed
40MHz	Closed	Open
