SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-317H
|
Processor |
CX486DLC |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
64MB |
|
Cache |
128KB |
|
BIOS |
AMI |
|
Dimensions |
220mm x 170mm |
|
I/O Options |
None |
|
NPU Options |
80387DX |
|

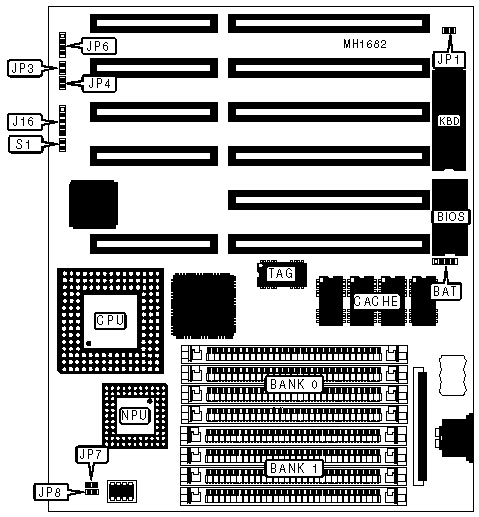

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
BAT |
Turbo switch |
JP4 |
|
Power LED & keylock |
J16 |
Speaker |
JP6 |
|
Turbo LED |
JP3 |
Reset switch |
S1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
Factory configured - do not alter |
JP7 |
N/A | |
|
Factory configured - do not alter |
JP8 |
N/A | |
| » |
Monitor type select color |
SW1/switch 6 |
On |
|
Monitor type select monochrome |
SW1/switch 6 |
Off | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 4 |
|
64MB |
(4) 16M x 9 |
NONE |
