TANDY/RADIO SHACK
1000 SL/2
|
Processor |
8086 |
|
Processor Speed |
4/8MHz |
|
Chip Set |
Tandy |
|
Max. Onboard DRAM |
640KB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Proprietary printer interface, serial ports (2), monitor port |
|
NPU Options |
8087 |
|

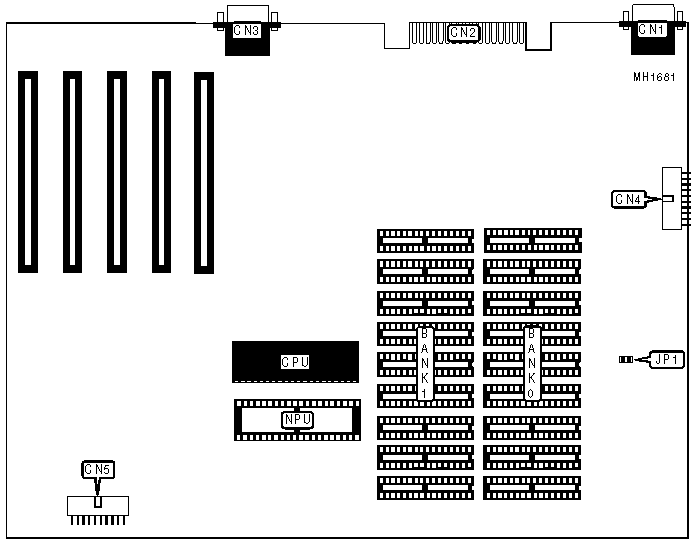

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port |
CN1 |
Keyboard/Joystick satellite board |
CN4 |
|
Proprietary printer interface |
CN2 |
Audio control satellite board |
CN5 |
|
Monitor |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
N/A |
|
» |
Microphone audio jumper |
E2 & E3 |
Closed |
|
Line audio device |
E1 & E2 |
Closed | |
|
Note:Mic/line jumper located on audio control satellite board. | |||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 2 |
|
512KB |
(9) 4864 |
NONE |
|
640KB |
(9) 4864 |
(9) 4816 |
