Processor	80386DX
Processor Speed	25/33/40MHz
Chip Set	OPTI
Max. Onboard DRAM	64MB
Cache	128KB
BIOS	AMI
Dimensions	220mm x 170mm
I/O Options	None
NPU Options	80387DX

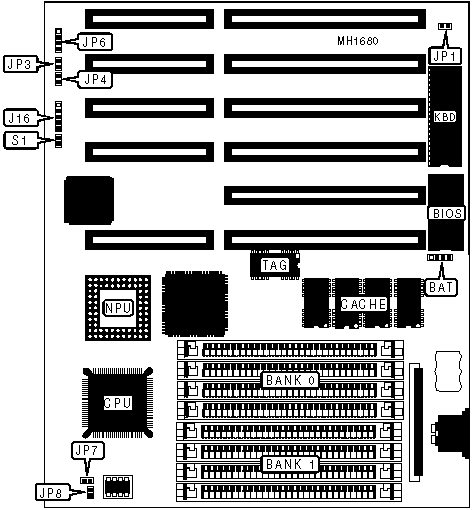

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	BAT	Speaker	JP6
Turbo LED	JP3	Reset switch	S1
Turbo switch	JP4	Power LED & keylock	J16

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Monitor type select color	JP1	closed
	Monitor type select monochrome	JP1	open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9
64MB	(4) 16M x 9	NONE

CACHE CONFIGURATION
Size	Cache	TAG
128KB	(4)32K x 8	(1)32K x 8
