Processor	80486SX/80487SX/80486DX/80486DX2
Processor Speed	33/66(internal)MHz
Chip Set	Galaxy
Max. Onboard DRAM	32MB
Cache	None
BIOS	Reply
Dimensions	330mm x 218mm
I/O Options	Parallel port, PS/2 mouse port, serial port, VGA port
NPU Options	None

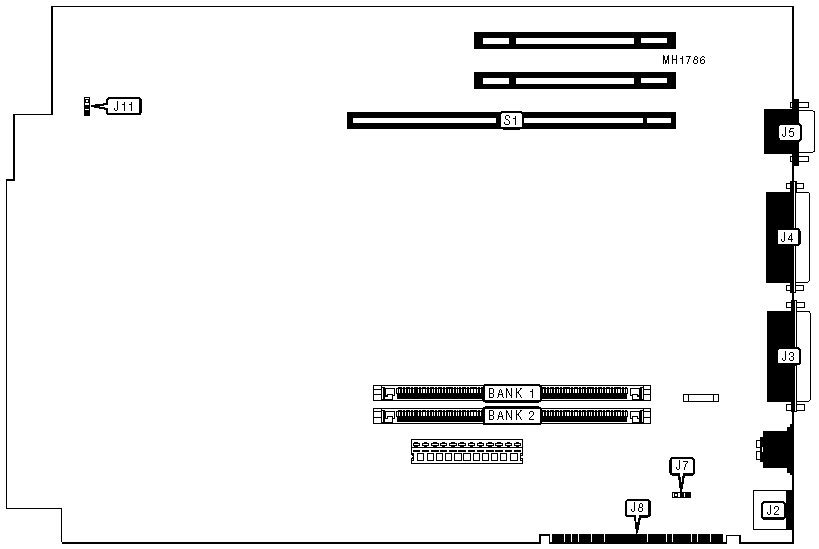

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	J2	Power supply connector	J8
VGA port	J3	Speaker	J11
Parallel port	J4	MCA feature connector	S1
Serial port	J5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J7	pins 2 & 3 closed
	CMOS memory clear	J7	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 1	Bank 2
4MB	(2) 4M x 9	(2) 4M x 9
32MB	(2) 8M x 9	(2) 8M x 9
