Processor	80286
Processor Speed	8/10MHz
Chip Set	C & T
Max. onboard DRAM	2MB
SRAM Cache	None
BIOS	Phoenix
Dimensions	330mm x 240mm
I/O Options	32-bit memory expansion slot
NPU Options	80287

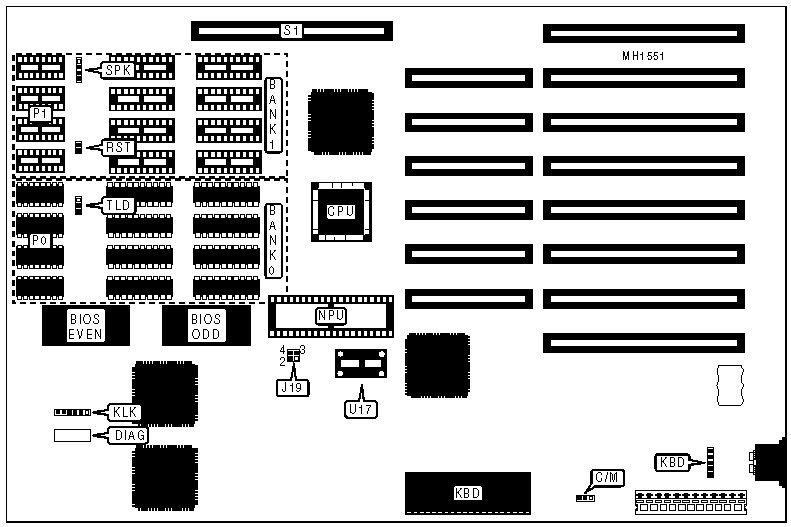

CONNECTIONS
Purpose	Location	Purpose	Location
Diagnostics header	DIAG	32-bit memory expansion slot	S1
Keyboard	KBD	Speaker	SPK
Power LED & keylock	KLK	Turbo LED	TLD
Reset	RST
Note:The diagnostics header is used in preproduction, and no aftermarket technical information is available on its usage.

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Monitor type select color	C/M	pins 1 & 2 closed
	Monitor type select monochrome	C/M	pins 2 & 3 closed

SPEED CONFIGURATION
Speed	U17	J19
8MHz	Empty	pins 1 & 2 closed
10MHz	30-32MHz crystal	pins 3 & 4 closed

DRAM CONFIGURATION
Size	Bank 0	Parity 0 (P0)	Bank 1	Parity 1 (P1)
1MB	(8) 44256	(4) 41256	NONE	NONE
2MB	(8) 44256	(4) 41256	(8) 44256	(4) 41256
Note:Banks are soldered to the board.
