Processor	80386DX
Processor Speed	33/40MHz
Chip Set	C & T
Max. Onboard DRAM	32MB
Cache	64KB
BIOS	Phoenix
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387DX/3167

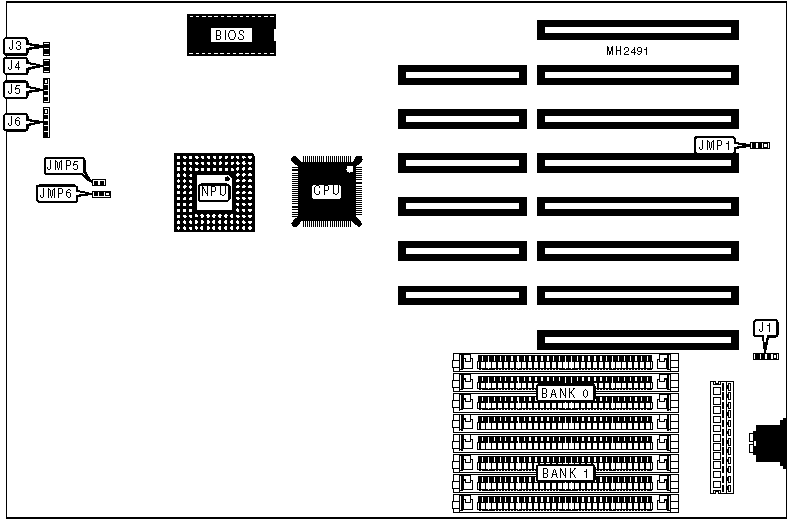

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Speaker	J5
Turbo LED	J3	Power LED & keylock	J6
Reset switch	J4

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Power good signal detect from power supply	JMP1	pins 2 & 3 closed
	Power good signal detect from board	JMP1	pins 1 & 2 closed
»	Cache enabled	JMP5	Closed
	Cache disabled	JMP5	Open
»	Monitor type select CGA	JMP6	pins 1 & 2 closed
	Monitor type select EGA/VGA	JMP6	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION

Note: This board is installed with 64KB. The location is unidentified.
