MICRO-STAR INTERNATIONAL CO., LTD.
MS-5103 PCI/ISA 586MCI
|

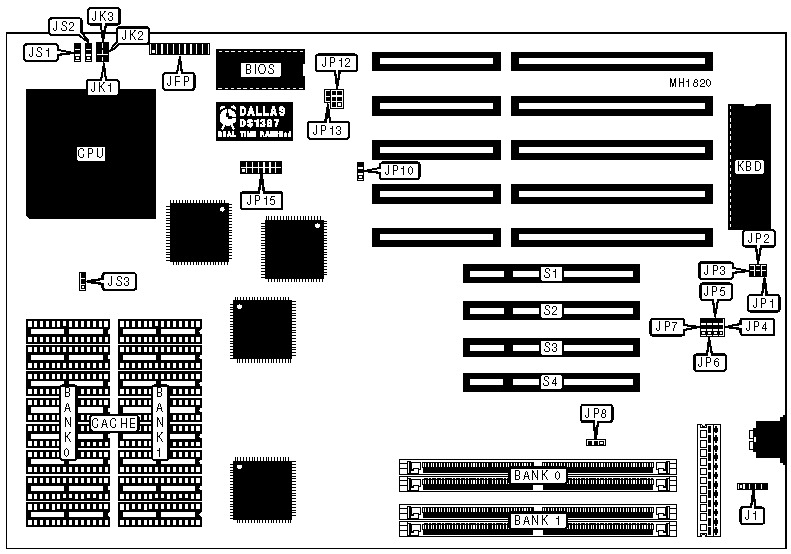

Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI local bus slots (4) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
32-bit PCI Local bus slot |
S1 |
32-bit PCI Local bus slot |
S3 |
|
32-bit PCI Local bus slot |
S2 |
32-bit PCI Local bus slot |
S4 |
|
PIN OUT CONFIGURATION | |
|
Connector |
JFP |
|
Keylock |
pins 1 & 2 closed |
|
Power LED |
pins 3 & 5 closed |
|
Reset |
pins 19 & 20 closed |
|
Speaker |
pins 7, 8, 9, & 10 closed |
|
Note:Pins not designated are not used. | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
J1 |
N/A |
|
» |
Factory configured - do not alter |
JP1 |
N/A |
|
» |
Factory configured - do not alter |
JP2 |
N/A |
|
» |
Factory configured - do not alter |
JP3 |
N/A |
|
MS-3805 PCI SCSI controller card installed |
JP8 |
pins 1 & 2 closed | |
|
MS-3805 PCI SCSI controller card not installed |
JP8 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP10 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP12 |
pins 5 & 6 closed |
|
» |
CMOS memory normal operation |
JP13 |
Open |
|
CMOS memory clear |
JP13 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(8) 32K x 8 |
NONE |
|
512KB |
(8) 32K x 8 |
(8) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JS1 |
JS2 |
JS3 |
|
0KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
256KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
512KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JK1 |
JK2 |
JK3 |
|
60MHz |
Closed |
Open |
Open |
|
66MHz |
Closed |
Closed |
Open |
|
PCI INTERRUPT CONFIGURATION | |||||
|
IRQ |
JP4 |
JP5 |
JP6 |
JP7 |
JP15 |
|
Edge trigger IRQ9 |
pins 2 & 3 |
N/A |
N/A |
N/A |
pins 1 & 2 |
|
Edge trigger IRQ10 |
N/A |
N/A |
pins 2 & 3 |
N/A |
pins 1 & 2 |
|
Edge trigger IRQ11 |
N/A |
pins 2 & 3 |
N/A |
N/A |
pins 1 & 2 |
|
Edge trigger IRQ14 |
N/A |
N/A |
N/A |
pins 2 & 3 |
pins 1 & 2 |
|
Edge trigger IRQ15 |
N/A |
N/A |
N/A |
N/A |
pins 1 & 2 |
|
Note:Pins designated should be in the closed position. | |||||
|
LEVEL TRIGGER PCI INTERRUPT | |
|
IRQ select |
JP15 |
|
5 |
pins 1 & 2 closed |
|
9 |
pins 7 & 8 closed |
|
10 |
pins 9 & 10 closed |
|
11 |
pins 3 & 4 closed |
|
12 |
pins 11 & 12 closed |
|
14 |
pins 13 & 14 closed |
|
15 |
pins 5 & 6 closed |
