OCEAN INFORMATION SYSTEMS, INC.
PANTHER-2
|
Processor |
80386SX |
|
Processor Speed |
16/20/25/33MHz |
|
Chip Set |
OPTI |
|
Max. onboard DRAM |
16MB |
|
SRAM Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
None |
|
NPU Options |
80387SX |
|

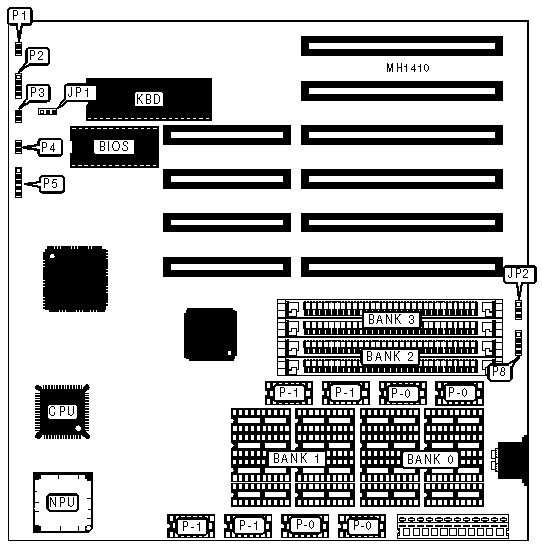

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
P1 |
Turbo LED |
P4 |
|
Speaker |
P2 |
Power LED & keylock |
P5 |
|
Turbo switch |
P3 |
External battery |
P8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select monochrome |
JP1 |
pins 1 & 2 closed |
|
Monitor type select color |
JP1 |
pins 2 & 3 closed | |
| » |
CMOS memory normal operation |
JP2 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP2 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||||||
|
Size |
Bank 0 |
P-0 |
Bank 1 |
P-1 |
Bank 2 |
Bank 3 |
|
1MB |
(8) 44256 |
(4) 41256 |
NONE |
NONE |
NONE |
NONE |
|
2MB |
(8) 44256 |
(4) 41256 |
(8) 44256 |
(4) 41256 |
NONE |
NONE |
|
2MB |
NONE |
NONE |
NONE |
NONE |
(2) 1M x 9 |
NONE |
|
4MB |
NONE |
NONE |
NONE |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
|
10MB |
NONE |
NONE |
NONE |
NONE |
(2) 1M x 9 |
(2) 4M x 9 |
|
16MB |
NONE |
NONE |
NONE |
NONE |
(2) 4M x 9 |
(2) 4M x 9 |
