MONOLITHIC SYSTEMS, INC. (COLORADO MSI)
MICROFRAME 386P
|
Processor |
80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
C & T PEAK DM |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Auxiliary keyboard connector, bus mouse port |
|
NPU Options |
80387/3167 |
|

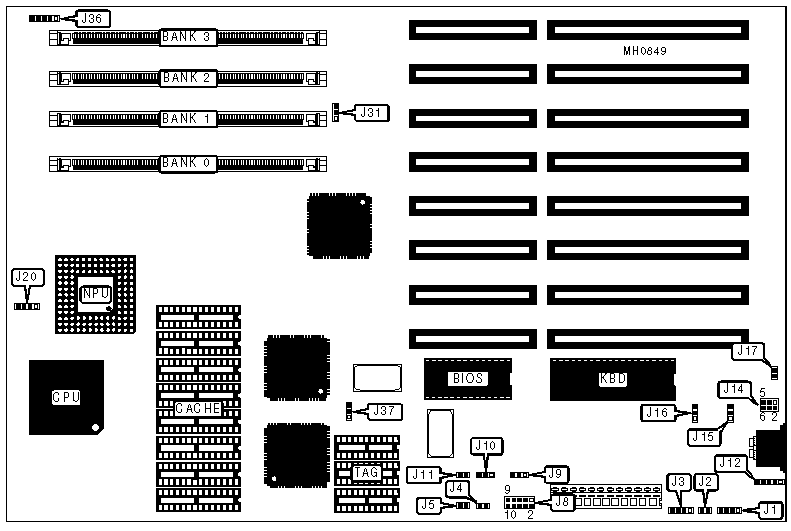

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J1 |
Auxiliary keyboard |
J12 |
|
IDE interface LED |
J3 |
Bus mouse |
J14 |
|
Ready LED |
J4 |
Speaker |
J20 |
|
Reset switch |
J5 |
Power LED & keylock |
J36 |
|
Front panel composite cable |
J8 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
CMOS memory normal operation |
J2 |
Open |
|
CMOS memory clear |
J2 |
Closed | |
| » |
Factory configured - do not alter |
J9 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
J10 |
pins 1 & 2 closed |
| » |
PS/2 mouse enabled |
J11 |
Closed |
|
PS/2 mouse disabled |
J11 |
Open | |
| » |
Factory configured - do not alter |
J15 |
pins 2 & 3 closed |
| » |
Monitor type select color |
J16 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
J16 |
pins 1 & 2 closed | |
| » |
Factory configured - do not alter |
J17 |
Open |
| » |
DMA signal select active high |
J31 |
pins 1 & 2 closed |
|
DMA signal select active low |
J31 |
pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
J37 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
2MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
3MB |
(1) 2M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
4MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
5MB |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
6MB |
(1) 2M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
7MB |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
|
8MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
9MB |
(1) 8M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
10MB |
(1) 8M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
11MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 1M x 36 |
NONE |
|
12MB |
(1) 8M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
13MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
|
14MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
NONE |
|
15MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
17MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
NONE |
|
18MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 2M x 36 |
NONE |
|
19MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 1M x 36 |
|
20MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
NONE |
|
21MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
|
22MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
|
24MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
25MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 1M x 36 |
|
26MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 2M x 36 |
|
28MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 4M x 36 |
|
32MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
Note:These configurations were verified by the manufacturer. | ||||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
64KB |
(8) 8K x 8 |
(3) 16K x 4 |
