MITAC INTERNATIONAL CORPORATION
IB-3033
|
Processor |
80386DX |
|
Processor Speed |
33MHz |
|
Chip Set |
TI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

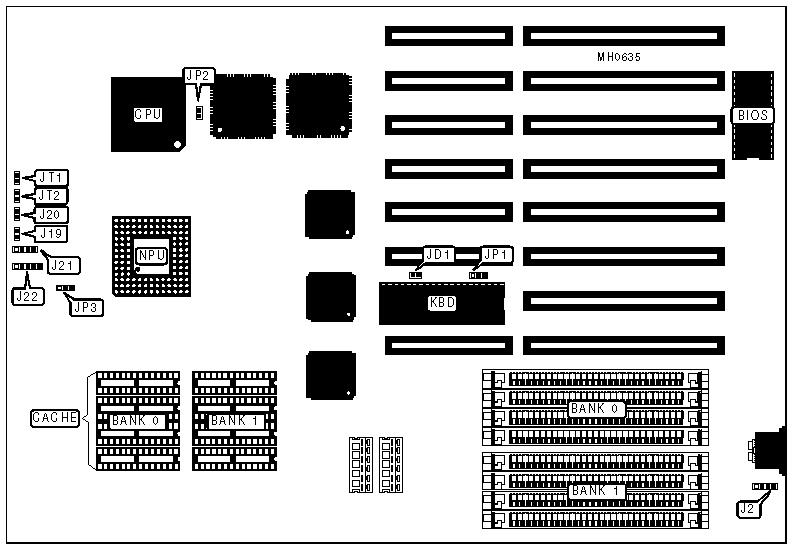

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J2 |
Power LED & keylock |
J22 |
|
Reset switch |
J19 |
Turbo switch |
JT1 |
|
Power LED |
J20 |
Turbo LED |
JT2 |
|
Speaker |
J21 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
JD1 |
Open |
| » |
Monitor type select monochrome |
JP1 |
pins 2 & 3 closed |
|
Monitor type select color |
JP1 |
pins 1 & 2 closed | |
| » |
Pipeline mode enabled |
JP2 |
Closed |
|
Pipeline mode disabled |
JP2 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
32KB |
(4) 8K x 8 |
NONE |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP3 |
|
32KB |
pins 1 & 2 closed |
|
64KB |
pins 1 & 2 closed |
|
128KB |
pins 2 & 3 closed |
