Processor	80386SX
Processor Speed	16/20MHz
Chip Set	Morse
Max. Onboard DRAM	16MB
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387SX

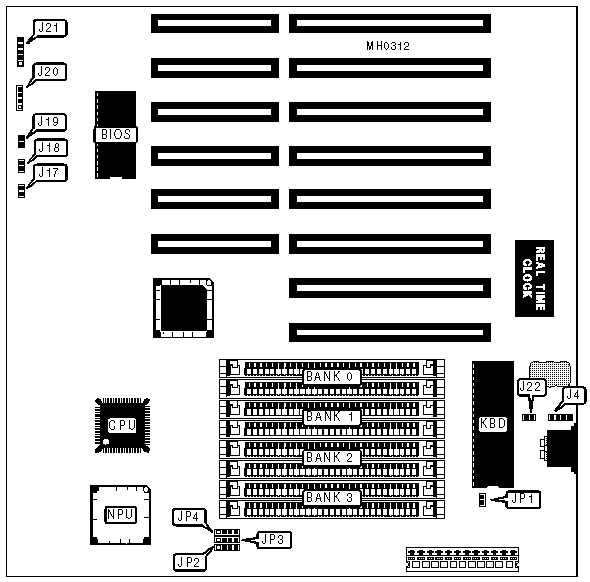

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J4	Turbo LED	J19
Reset switch	J17	Speaker	J20
Turbo switch	J18	Power LED & keylock	J21

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J22	Closed
	CMOS memory clear	J22	Open
»	Monitor type select color	JP1	Closed
	Monitor type select monochrome	JP1	Open
»	Factory configured - do not alter	JP2	N/A
»	Factory configured - do not alter	JP3	N/A
»	Factory configured - do not alter	JP4	N/A

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE	NONE	NONE
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
4.5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	NONE
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE	NONE	NONE
16MB	(2) 4M x 9	(2) 4M x 9	NONE	NONE
