Processor	80286
Processor Speed	12/16MHz
Chip Set	None
Max. Onboard DRAM	4MB
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80287

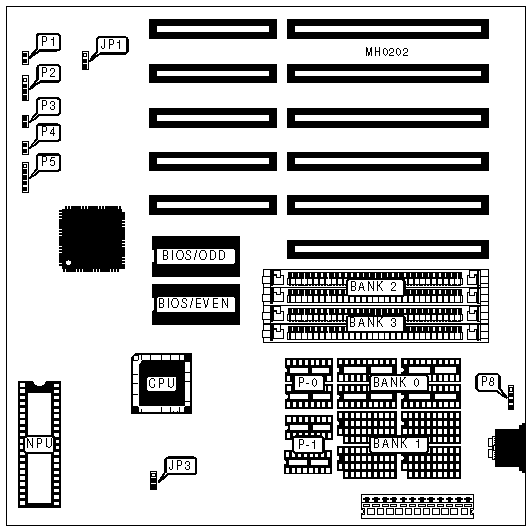

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	P1	Turbo LED	P4
Speaker	P2	Power LED & keylock	P5
Turbo switch	P3	External battery	P8

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	BIOS type select 27256	JP1	pins 1 & 2 closed
	BIOS type select 27128	JP1	pins 2 & 3 closed
»	Monitor type select monochrome	JP3	pins 1 & 2 closed
	Monitor type select color	JP3	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Parity (P-0)	Bank 1	Parity (P-1)	Bank 2	Bank 3
512KB	(4) 44256	(2) 41256	NONE	NONE	NONE	NONE
512KB	NONE	NONE	NONE	NONE	(2) 256K x 9	NONE
640KB	(4) 44256	(2) 41256	(4) 4464	(2) 4164	NONE	NONE
640KB	NONE	NONE	(4) 4464	(2) 4164	(2) 256K x 9	NONE
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	NONE	NONE
1MB	NONE	NONE	NONE	NONE	(2) 256K x 9	(2) 256K x 9
2MB	NONE	NONE	NONE	NONE	(2) 1M x 9	NONE
2.5MB	(4) 44256	(2) 41256	NONE	NONE	(2) 1M x 9	NONE
4MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 1M x 9
