INDUSTRIAL COMPUTER SOURCE
SB586T SERIES
|
Processor |
Pentium |
|
Processor Speed |
100/133/166/200/233MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
1MB |
|
Cache |
512KB |
|
BIOS |
AMI |
|
Dimensions |
Unidentified |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, IPC connector, Ultra SCSI interface |
|
NPU Options |
None |
|

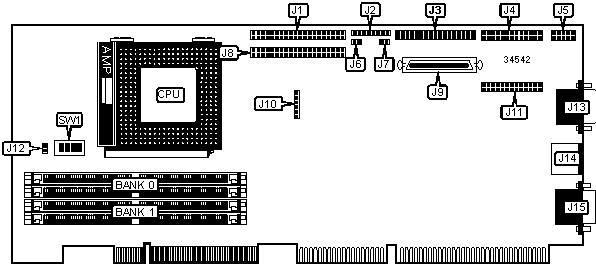

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IDE interface 1 |
J1 |
Ultra SCSI interface |
J9 |
|
Speaker, keyboard, keylock ,reset |
J2 |
IPC connector |
J10 |
|
Floppy drive interface |
J3 |
VGA feature connector |
J11 |
|
Parallel port |
J4 |
Chassis fan power |
J12 |
|
Serial port 2 |
J5 |
Serial port 1 |
J13 |
|
IDE interface LED |
J6 |
PS/2 mouse port |
J14 |
|
SCSI interface LED |
J7 |
VGA port |
J15 |
|
IDE interface 2 |
J8 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Watchdog timer disabled |
SW1/3 |
Off | |
|
Watchdog timer enabled |
SW1/3 |
On | |
|
» |
CMOS memory normal operation |
SW1/4 |
Off |
|
CMOS memory clear |
SW1/4 |
On | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(2) 32K x 32 |
|
Note: The location of bank 0 is unidentified. The location is unidentified. | |
|
VIDEO MEMORY CONFIGURATION |
|
Note: Board is factory installed with 1MB video memory. The location of the video memory is unidentified. |
|
CPU SPEED SELECTION | ||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
|
200MHz |
66MHz |
3x |
Off |
On |
|
233MHz |
66MHz |
2x |
Off |
Off |
