IBM CORPORATION
APTIVA 2136
|
Processor |
CX M1/IBM/Pentium |
|
Processor Speed |
100/120/133/150/166/200MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
1MB |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot, fax/modem/voice connector, line in, CD-ROM audio in, audio in connector, |
|
NPU Options |
None |
|

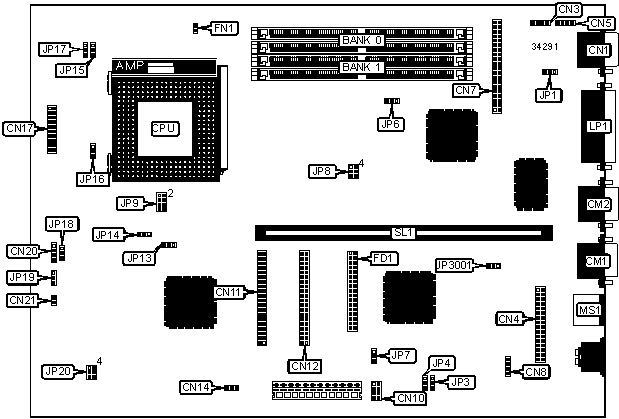

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Floppy drive interface |
FD1 |
Software shutdown connector |
CN14 |
|
Chassis fan power |
FN1 |
Power LED & keylock |
CN17/pins 3 - 5 |
|
VGA port |
CN1 |
IDE interface LED |
CN20 |
|
Fax/modem/voice connector |
CN3 |
Power switch |
CN21 |
|
Audio in connector |
CN4 |
Serial port |
CM1 |
|
Line in |
CN5 |
Serial port |
CM2 |
|
VGA feature connector |
CN7 |
Green PC connector |
JP19 |
|
CD-ROM audio in |
CN8 |
Parallel port |
LP1 |
|
Wavetable connector |
CN10 |
PS/2 mouse port |
MS1 |
|
IDE interface 1 |
CN11 |
Riser slot |
SL1 |
|
IDE interface 2 |
CN12 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
On board video enabled |
JP1 |
Pins 2 & 3 closed |
|
On board video disabled |
JP1 |
Pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP3 |
Pins 1 & 2 closed |
|
» |
Password enabled |
JP4 |
Pins 1 & 2 closed |
|
Password disabled |
JP4 |
Pins 2 & 3 closed | |
|
» |
BIOS select flash BIOS |
JP7 |
Pins 2 & 3 closed |
|
BIOS select block ROM |
JP7 |
Pins 1 & 2 closed | |
|
» |
LED select IDE & floppy LEDs |
JP18 |
Pins 1 & 2 closed |
|
LED select IDE LED only |
JP18 |
Pins 2 & 3 closed | |
|
» |
Factory configured - Software shut down enabled |
JP20 |
Pins 1 & 2, 4 & 5 closed |
|
» |
Flash BIOS write protect disabled |
JP3001 |
Pins 2 & 3 closed |
|
Flash BIOS write protect enabled |
JP3001 |
Pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 32 |
None |
|
16MB |
(2) 2M x 32 |
None |
|
16MB |
(2) 1M x 32 |
(2) 1M x 32 |
|
24MB |
(2) 2M x 32 |
(2) 1M x 32 |
|
32MB |
(2) 4M x 32 |
None |
|
32MB |
(2) 2M x 32 |
(2) 2M x 32 |
|
40MB |
(2) 4M x 32 |
(2) 1M x 32 |
|
48MB |
(2) 4M x 32 |
(2) 2M x 32 |
|
64MB |
(2) 8M x 32 |
None |
|
64MB |
(2) 4M x 32 |
(2) 4M x 32 |
|
72MB |
(2) 8M x 32 |
(2) 1M x 32 |
|
80MB |
(2) 8M x 32 |
(2) 2M x 32 |
|
96MB |
(2) 8M x 32 |
(2) 4M x 32 |
|
128MB |
(2) 8M x 32 |
(2) 8M x 32 |
|
Note: Board accepts EDO memory. Banks are interchangeable. | ||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(2) 32K x 32 |
|
512KB |
(2) 64K x 32 |
|
Note: The location of the cache is unidentified. | |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP6 |
|
256KB |
Pins 1 & 2 closed |
|
512KB |
Pins 2 & 3 closed |
|
CACHE OPERATION CONFIGURATION | ||
|
Type |
JP16 | |
| » |
Interleave burst |
Pins 1 & 2 closed |
|
Linear burst |
Pins 2 & 3 closed | |
|
VIDEO MEMORY CONFIGURATION |
|
Note: 1MB video memory is factory installed and is not configurable. The location is unidentified. |
|
CPU SPEED SELECTION (CYRIX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP15 |
JP17 |
|
120MHz |
50MHz |
2x |
1 & 4 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2x |
2 & 5 |
1 & 2 |
2 & 3 |
|
166MHz |
66MHz |
2x |
3 & 6 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (IBM) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP15 |
JP17 |
|
120MHz |
50MHz |
2x |
1 & 4 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2x |
2 & 5 |
1 & 2 |
2 & 3 |
|
166MHz |
66MHz |
2x |
3 & 6 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP15 |
JP17 |
|
100MHz |
66MHz |
1.5x |
3 & 6 |
1 & 2 |
1 & 2 |
|
120MHz |
60MHz |
2x |
2 & 5 |
1 & 2 |
2 & 3 |
|
133MHz |
66MHz |
2x |
3 & 6 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
2 & 5 |
2 & 3 |
2 & 3 |
|
166MHz |
66MHz |
2.5x |
3 & 6 |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
3 & 6 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU VOLTAGE SELECTION | |
|
Type |
JP9 |
|
Single |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed |
|
Dual |
Open |
|
CPU VOLTAGE SELECTION (SINGLE) | |
|
Voltage |
JP14 |
|
3.35v |
Pins 2 & 3 closed |
|
3.5v |
Pins 1 & 2 closed |
|
CPU VOLTAGE SELECTION (DUAL) | |||
|
Voltage |
V core |
JP13 |
JP14 |
|
3.35v |
2.5v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
3.35v |
2.8v |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
3.5v |
2.5v |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
3.5v |
2.8v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
