Processor	80286
Processor Speed	Unidentified
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	1MB
Maximum Video Memory	None
Cache	None
BIOS	IBM/Phoenix
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

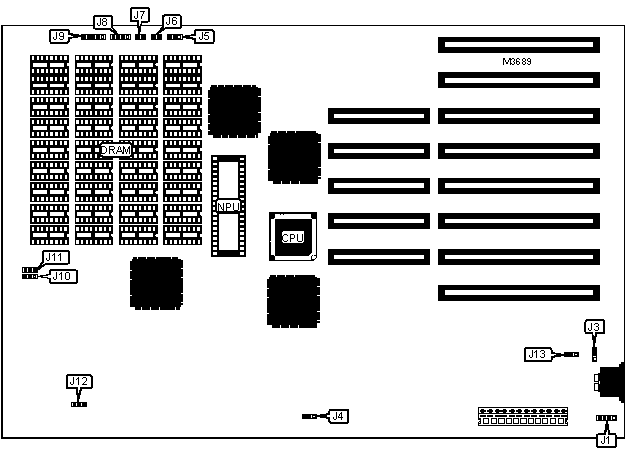

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Reset switch	J7
Turbo switch	J5	Speaker	J8
Turbo LED	J6	Power LED & keylock	J9

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select monochrome	J3	Pins 1 & 2 closed
	Monitor type select color	J3	Pins 2 & 3 closed
	Parity check disabled	J4	Pins 1 & 2 closed
	Parity check enabled	J4	Pins 2 & 3 closed
	Wait state select 1 wait state	J10	Pins 1 & 2 closed
	Wait state select 0 wait states	J10	Pins 2 & 3 closed
»	Factory configured - do not alter	J12	Unidentified
	BIOS type select IBM/Phoenix	J13	Pins 1 & 2 closed
	BIOS type select all other BIOS types	J13	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
640KB	(18) 41256	(18) 4164
1MB	(18) 41256	(18) 41256

DRAM JUMPER CONFIGURATION
Size	J11
640KB	Pins 1 & 2 closed
1MB	Pins 2 & 3 closed
