ALTSERVER/CS

INTEL CORPORATION

ALTSERVER/CS

Processor

Pentium

Processor Speed

75/90/100/120/133/166MHz

Chip Set

Intel

Maximum Onboard Memory

256MB

Cache

256/512KB

BIOS

AMI

Dimensions

330mm x 305mm

I/O Options

32-bit PCI slots (3), floppy drive interface, IDE interface, SCSI interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), server monitor feature connector, VGA interface, cache slot

NPU Options

None

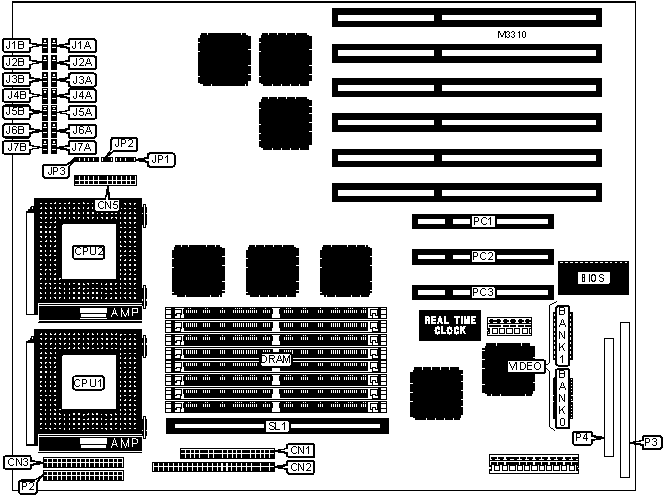

CONNECTIONS

Function

Label

Function

Label

IDE interface

CN1

Serial port 1

P3 pins 7 - 14

SCSI interface

CN2

Serial port 2

P3 pins 15 - 22

Floppy drive interface

CN3

Wide SCSI interface

P3 pins 23 - 40

Server monitor feature connector

CN5

VGA interface

P3 pins 41 - 52

Speaker

JP1

Parallel port

P3 pins 53 - 72

Reset switch

JP2

Wide SCSI interface

P3 pins 98 - 113

Front panel connector

JP3

SCSI terminator

P4

Front panel connector

P2

Cache slot

SL1

PS/2 mouse interface

P3 pins 1 - 3

32-bit PCI slots

PC1 - PC3

Keyboard

P3 pins 4- 6

Note: The location of pin 1 on all connectors is unidentified.

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

CMOS memory normal operation

J1B

Pins 1 & 2 closed

CMOS memory clear

J1B

Pins 2 & 3 closed

»

Password normal operation

J2B

Pins 1 & 2 closed

Password clear

J2B

Pins 2 & 3 closed

»

Primary CPU installed in socket 1

J3B

Pins 1 & 2 closed

Primary CPU installed in socket 2

J3B

Pins 2 & 3 closed

»

Monitor type select color

J4A

Pins 1 & 2 closed

Monitor type select monochrome

J4A

Pins 2 & 3 closed

»

Factory configured - do not alter (disable and ground)

J4B

Pins 1 & 2 closed

Factory configured - do not alter (enable kick start)

J4B

Pins 2 & 3 closed

»

Flash BIOS boot block enabled

J5A

Pins 1 & 2 closed

Flash BIOS boot block disabled

J5A

Pins 2 & 3 closed

»

Flash BIOS write protect disabled

J6A

Pins 1 & 2 closed

Flash BIOS write protect enabled

J6A

Pins 2 & 3 closed

»

Flash BIOS normal boot

J7A

Pins 1 & 2 closed

Flash BIOS recovery mode

J7A

Pins 2 & 3 closed

»

Factory configured - do not alter (option high)

J7B

Pins 1 & 2 closed

Factory configured - do not alter (option low)

J7B

Pins 2 & 3 closed

DRAM

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(2) 1M x 36

None

None

None

16MB

(2) 2M x 36

None

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 1M x 36

(2) 2M x 36

None

None

32MB

(2) 4M x 36

None

None

None

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 4M x 36

(2) 1M x 36

None

None

40MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

None

40MB

(2) 1M x 36

(2) 4M x 36

None

None

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

48MB

(2) 2M x 36

(2) 4M x 36

None

None

56MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

None

None

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

72MB

(2) 8M x 36

(2) 1M x 36

None

None

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

None

72MB

(2) 1M x 36

(2) 8M x 36

None

None

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

None

80MB

(2) 8M x 36

(2) 2M x 36

None

None

80MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

80MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

None

80MB

(2) 2M x 36

(2) 8M x 36

None

None

88MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 4M x 36

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 8M x 36

None

None

104MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

112MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

112MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

None

128MB

(2) 8M x 36

(2) 8M x 36

None

None

DRAM (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

136MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

None

144MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

None

160MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

160MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

200MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

208MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

224MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

Note: The orientation of the banks is unidentified.

CACHE SIZE

Size

SL1

256KB

Installed

512KB

Installed

Note: Cache can either be asynchronous or burst synchronous.

CPU SPEED

Setting

J1A

J2A

J5B

J6B

75MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

90MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

100MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

120MHz

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

133MHz

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

166MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

CPU VOLTAGE

Setting

J3A

STD/VRE CPU installed

Pins 1 & 2 closed

N/A

Pins 2 & 3 closed

VIDEO MEMORY

Size

Bank 0

Bank 1

512KB

(1) 256K x 16

None

1MB

(1) 256K x 16

(1) 256K x 16

Processor	Pentium
Processor Speed	75/90/100/120/133/166MHz
Chip Set	Intel
Maximum Onboard Memory	256MB
Cache	256/512KB
BIOS	AMI
Dimensions	330mm x 305mm
I/O Options	32-bit PCI slots (3), floppy drive interface, IDE interface, SCSI interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), server monitor feature connector, VGA interface, cache slot
NPU Options	None

CONNECTIONS
Function	Label	Function	Label
IDE interface	CN1	Serial port 1	P3 pins 7 - 14
SCSI interface	CN2	Serial port 2	P3 pins 15 - 22
Floppy drive interface	CN3	Wide SCSI interface	P3 pins 23 - 40
Server monitor feature connector	CN5	VGA interface	P3 pins 41 - 52
Speaker	JP1	Parallel port	P3 pins 53 - 72
Reset switch	JP2	Wide SCSI interface	P3 pins 98 - 113
Front panel connector	JP3	SCSI terminator	P4
Front panel connector	P2	Cache slot	SL1
PS/2 mouse interface	P3 pins 1 - 3	32-bit PCI slots	PC1 - PC3
Keyboard	P3 pins 4- 6
Note: The location of pin 1 on all connectors is unidentified.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	CMOS memory normal operation	J1B	Pins 1 & 2 closed
	CMOS memory clear	J1B	Pins 2 & 3 closed
»	Password normal operation	J2B	Pins 1 & 2 closed
	Password clear	J2B	Pins 2 & 3 closed
»	Primary CPU installed in socket 1	J3B	Pins 1 & 2 closed
	Primary CPU installed in socket 2	J3B	Pins 2 & 3 closed
»	Monitor type select color	J4A	Pins 1 & 2 closed
	Monitor type select monochrome	J4A	Pins 2 & 3 closed
»	Factory configured - do not alter (disable and ground)	J4B	Pins 1 & 2 closed
	Factory configured - do not alter (enable kick start)	J4B	Pins 2 & 3 closed
»	Flash BIOS boot block enabled	J5A	Pins 1 & 2 closed
	Flash BIOS boot block disabled	J5A	Pins 2 & 3 closed
»	Flash BIOS write protect disabled	J6A	Pins 1 & 2 closed
	Flash BIOS write protect enabled	J6A	Pins 2 & 3 closed
»	Flash BIOS normal boot	J7A	Pins 1 & 2 closed
	Flash BIOS recovery mode	J7A	Pins 2 & 3 closed
»	Factory configured - do not alter (option high)	J7B	Pins 1 & 2 closed
	Factory configured - do not alter (option low)	J7B	Pins 2 & 3 closed

DRAM
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(2) 1M x 36	None	None	None
16MB	(2) 2M x 36	None	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None
24MB	(2) 2M x 36	(2) 1M x 36	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	None
24MB	(2) 1M x 36	(2) 2M x 36	None	None
32MB	(2) 4M x 36	None	None	None
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36	None	None
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
40MB	(2) 4M x 36	(2) 1M x 36	None	None
40MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
40MB	(2) 1M x 36	(2) 2M x 36	(2) 2M x 36	None
40MB	(2) 1M x 36	(2) 4M x 36	None	None
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	None
48MB	(2) 4M x 36	(2) 2M x 36	None	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	None
48MB	(2) 2M x 36	(2) 4M x 36	None	None
56MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
56MB	(2) 1M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None	None	None
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36	None	None
64MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
72MB	(2) 8M x 36	(2) 1M x 36	None	None
72MB	(2) 1M x 36	(2) 4M x 36	(2) 4M x 36	None
72MB	(2) 1M x 36	(2) 8M x 36	None	None
80MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	None
80MB	(2) 8M x 36	(2) 2M x 36	None	None
80MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
80MB	(2) 2M x 36	(2) 4M x 36	(2) 4M x 36	None
80MB	(2) 2M x 36	(2) 8M x 36	None	None
88MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	None
96MB	(2) 8M x 36	(2) 4M x 36	None	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	None
96MB	(2) 4M x 36	(2) 8M x 36	None	None
104MB	(2) 1M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
112MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
112MB	(2) 2M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36	None
128MB	(2) 8M x 36	(2) 8M x 36	None	None

DRAM (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
128MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
136MB	(2) 1M x 36	(2) 8M x 36	(2) 8M x 36	None
144MB	(2) 2M x 36	(2) 8M x 36	(2) 8M x 36	None
160MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
160MB	(2) 4M x 36	(2) 8M x 36	(2) 8M x 36	None
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36	None
200MB	(2) 1M x 36	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
208MB	(2) 2M x 36	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
224MB	(2) 4M x 36	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
256MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
Note: The orientation of the banks is unidentified.

CACHE SIZE
Size	SL1
256KB	Installed
512KB	Installed
Note: Cache can either be asynchronous or burst synchronous.

CPU SPEED
Setting	J1A	J2A	J5B	J6B
75MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
90MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
100MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
120MHz	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
133MHz	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
166MHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

CPU VOLTAGE
Setting	J3A
STD/VRE CPU installed	Pins 1 & 2 closed
N/A	Pins 2 & 3 closed

VIDEO MEMORY
Size	Bank 0	Bank 1
512KB	(1) 256K x 16	None
1MB	(1) 256K x 16	(1) 256K x 16
