Processor	80286
Processor Speed	8/12MHz
Chip Set	SIS
Max. Onboard DRAM	5MB
Cache	None
BIOS	Phoenix
Dimensions	400mm x 400mm
I/O Options	Riser slot, VGA port, parallel port, serial ports (2), IDE interface, floppy drive interface
NPU Options	80287

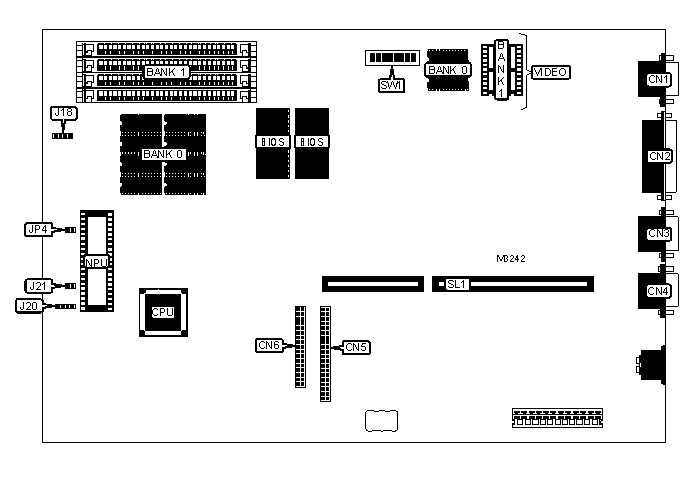

CONNECTIONS
Purpose	Location	Purpose	Location
VGA port	CN1	Power LED	J7
Parallel port	CN2	Keylock	J18
Serial port 1	CN3	External battery	J20
Serial port 2	CN4	IDE interface LED	J21
IDE interface	CN5	Riser slot	SL1
Floppy drive interface	CN6
Note: The location of J7 is unidentified.

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
	Monitor type select color	JP4	Closed
	Monitor type select monochrome	JP4	Open
	On board video enabled	SW1/1	On
	On board video disabled	SW1/1	Off
	Monitor type select Multisync	SW1/2	On
	Monitor type select any other monitor	SW1/2	Off
	VGA mode select PS/2 mode	SW1/3	On
	VGA mode select AT VGA mode	SW1/3	Off
	Parallel port enabled	SW1/4	On
	Parallel port disabled	SW1/4	Off
	Serial port 1 enabled	SW1/5	On
	Serial port 1 disabled	SW1/5	Off
	Serial port 2 enabled	SW1/6	On
	Serial port 2 disabled	SW1/6	Off
	Floppy drive interface enabled	SW1/7	On
	Floppy drive interface disabled	SW1/7	Off
	IDE interface enabled	SW1/8	On
	IDE interface disabled	SW1/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	1MB	None
2MB	1MB	(4) 256K x 9
5MB	1MB	(4) 1M x 9
Note: Bank 0 is factory installed and is not configurable.

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
256KB	256KB	None
512KB	256KB	256KB
Note: Bank 0 is factory installed and is not configurable.
