INTEL CORPORATION
PTI-5 ADVANCED/ZP
|
Processor |
Pentium |
|
Processor Speed |
50/60MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (3), green PC connector, floppy drive interface, IDE interfaces (2), parallel port, serial ports (2) |
|
NPU Options |
None |
|

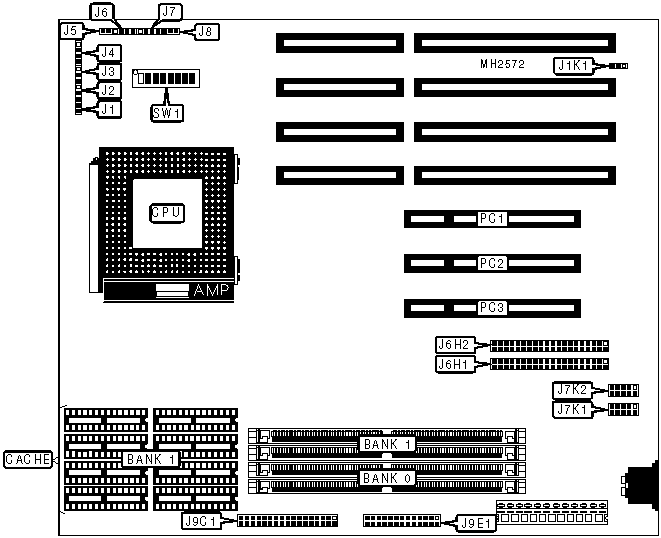

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Green PC connector |
J1 |
IDE interface (primary) |
J6H1 |
|
Infra red connector |
J2 |
IDE interface (secondary) |
J6H2 |
|
Chassis fan power |
J3 |
Serial port 1 |
J7K1 |
|
Speaker |
J4 |
Serial port 2 |
J7K2 |
|
Turbo LED |
J5 |
Floppy drive interface |
J9C1 |
|
IDE interface LED |
J6 |
Parallel port |
J9E1 |
|
Power LED & keylock |
J7 |
32-bit PCI slots |
PC1 - PC3 |
|
Reset switch |
J8 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
|
» |
Recovery boot enabled |
J1K1 |
pins 1 & 2 closed |
|
Recovery boot disabled |
J1K1 |
pins 2 & 3 closed | |
|
» |
ISA bus speed select 1/3 |
SW1/1 |
Off |
|
ISA bus speed select 1/4 |
SW1/1 |
On | |
|
» |
Processor voltage regulator select VR type processor |
SW1/2 |
Off |
|
Processor voltage regulator select VRE type processor |
SW1/2 |
On | |
|
» |
Password normal operation |
SW1/3 |
Off |
|
Password clear |
SW1/3 |
On | |
|
» |
CMOS memory normal operation |
SW1/4 |
Off |
|
CMOS memory clear |
SW1/4 |
On | |
|
» |
Setup entry enabled |
SW1/5 |
Off |
|
Setup entry disabled |
SW1/5 |
On | |
|
» |
Internal clock speed select 3/2x |
SW1/6 |
Off |
|
Internal clock speed select 2x |
SW1/6 |
On | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
NONE |
(2) 1M x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
NONE |
(2) 2M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
NONE |
(2) 4M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
NONE |
(2) 8M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 1 |
|
256KB |
(8) 32K x 8 |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
SW1/7 |
SW1/8 |
|
50MHz |
Off |
Off |
|
60MHz |
On |
Off |
