INTEL CORPORATION
PREMIERE/PCI LX
|
Processor |
Pentium |
|
Processor Speed |
90MHz |
|
Chip Set |
SMC |
|
Max. Onboard DRAM |
136MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots on riser card (2), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, VGA port |
|
NPU Options |
None |
|

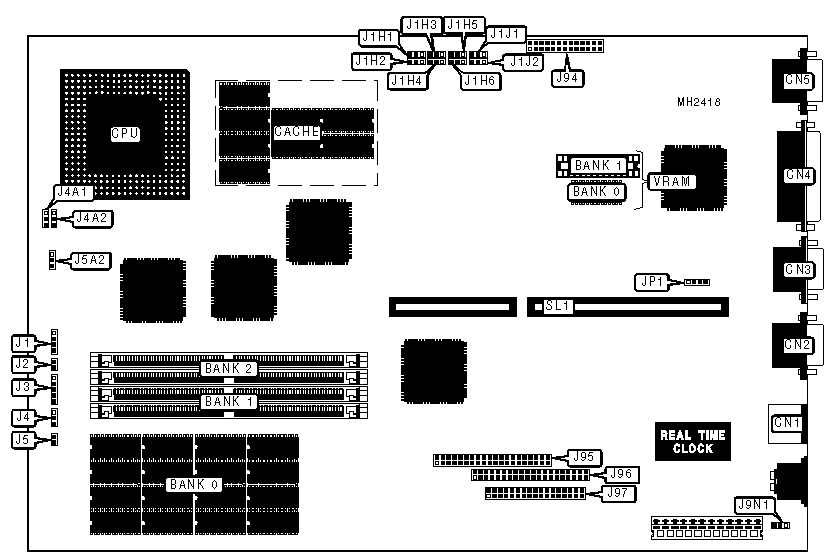

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse port |
CN1 |
Chassis fan power (fast fan) |
J4A1 |
|
Serial port 1 |
CN2 |
Chassis fan power (slow fan) |
J4A2 |
|
Serial port 2 |
CN3 |
Turbo switch |
J5A2 |
|
Parallel port |
CN4 |
VESA feature connector |
J94 |
|
VGA port |
CN5 |
IDE interface (PCI) |
J95 |
|
Speaker |
J1 |
IDE interface (ISA) |
J96 |
|
Reset switch |
J2 |
Floppy drive interface |
J97 |
|
Power LED & keylock |
J3 |
Auxiliary power connnector |
JP1 |
|
IDE interface LED |
J4 |
Riser Card |
SL1 |
|
Turbo LED |
J5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
BIOS recovery disabled |
J1H1 |
pins 1 & 2 closed |
|
BIOS recovery enabled |
J1H1 |
pins 2 & 3 closed | |
|
» |
BIOS upgrade in flash enabled |
J1H2 |
pins 2 & 3 closed |
|
BIOS upgrade in flash disabled |
J1H2 |
pins 1 & 2 closed | |
|
» |
Setup enter at boot up enabled |
J1H3 |
pins 2 & 3 closed |
|
Setup enter at boot up disabled |
J1H3 |
pins 1 & 2 closed | |
|
» |
Password disabled |
J1H4 |
pins 1 & 2 closed |
|
Password enabled |
J1H4 |
pins 2 & 3 closed | |
|
» |
Monitor type select color |
J1H5 |
pins 1 & 2 closed |
|
Monitor type select monochrome |
J1H5 |
pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
J1H6 |
pins 2 & 3 closed |
|
CMOS memory clear |
J1H6 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
J1J1 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J1J2 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J9N1 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
10MB |
(8) 481000 |
(2) 256K x 36 |
NONE |
|
12MB |
(8) 481000 |
(2) 256K x 36 |
(2) 256K x 36 |
|
12MB |
(8) 481000 |
(2) 512K x 36 |
NONE |
|
14MB |
(8) 481000 |
(2) 256K x 36 |
(2) 512K x 36 |
|
14MB |
(8) 481000 |
(2) 512K x 36 |
(2) 256K x 36 |
|
16MB |
(8) 481000 |
(2) 512K x 36 |
(2) 512K x 36 |
|
16MB |
(8) 481000 |
(2) 1M x 36 |
NONE |
|
18MB |
(8) 481000 |
(2) 256K x 36 |
(2) 1M x 36 |
|
18MB |
(8) 481000 |
(2) 1M x 36 |
(2) 256K x 36 |
|
20MB |
(8) 481000 |
(2) 512K x 36 |
(2) 1M x 36 |
|
20MB |
(8) 481000 |
(2) 1M x 36 |
(2) 512K x 36 |
|
24MB |
(8) 481000 |
(2) 1M x 36 |
(2) 1M x 36 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
24MB |
(8) 481000 |
(2) 2M x 36 |
NONE |
|
26MB |
(8) 481000 |
(2) 256K x 36 |
(2) 2M x 36 |
|
26MB |
(8) 481000 |
(2) 2M x 36 |
(2) 256K x 36 |
|
28MB |
(8) 481000 |
(2) 512K x 36 |
(2) 2M x 36 |
|
28MB |
(8) 481000 |
(2) 2M x 36 |
(2) 512K x 36 |
|
32MB |
(8) 481000 |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(8) 481000 |
(2) 2M x 36 |
(2) 1M x 36 |
|
40MB |
(8) 481000 |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(8) 481000 |
(2) 4M x 36 |
NONE |
|
42MB |
(8) 481000 |
(2) 256K x 36 |
(2) 4M x 36 |
|
42MB |
(8) 481000 |
(2) 4M x 36 |
(2) 256K x 36 |
|
44MB |
(8) 481000 |
(2) 512K x 36 |
(2) 4M x 36 |
|
44MB |
(8) 481000 |
(2) 4M x 36 |
(2) 512K x 36 |
|
48MB |
(8) 481000 |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(8) 481000 |
(2) 4M x 36 |
(2) 1M x 36 |
|
56MB |
(8) 481000 |
(2) 2M x 36 |
(2) 4M x 36 |
|
56MB |
(8) 481000 |
(2) 4M x 36 |
(2) 2M x 36 |
|
72MB |
(8) 481000 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(8) 481000 |
(2) 8M x 36 |
NONE |
|
74MB |
(8) 481000 |
(2) 256K x 36 |
(2) 8M x 36 |
|
74MB |
(8) 481000 |
(2) 8M x 36 |
(2) 256K x 36 |
|
76MB |
(8) 481000 |
(2) 512K x 36 |
(2) 8M x 36 |
|
76MB |
(8) 481000 |
(2) 8M x 36 |
(2) 512K x 36 |
|
80MB |
(8) 481000 |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(8) 481000 |
(2) 8M x 36 |
(2) 1M x 36 |
|
88MB |
(8) 481000 |
(2) 2M x 36 |
(2) 8M x 36 |
|
88MB |
(8) 481000 |
(2) 8M x 36 |
(2) 2M x 36 |
|
104MB |
(8) 481000 |
(2) 4M x 36 |
(2) 8M x 36 |
|
104MB |
(8) 481000 |
(2) 8M x 36 |
(2) 4M x 36 |
|
136MB |
(8) 481000 |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Bank 0 is factory installed and is not configurable. | |||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(8) 32K x 8 |
|
Note: Cache is factory installed and is not configurable. | |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(1) 1024K x 8 |
NONE |
|
2MB |
(1) 1024K x 8 |
(1) 1024K x 8 |
