Processor	80386SX
Processor Speed	16/20/25/33MHz
Chip Set	PC Chip
Max. Onboard DRAM	16MB
Cache	None
BIOS	AMI
Dimensions	254mm x 220mm
I/O Options	None
NPU Options	80387SX

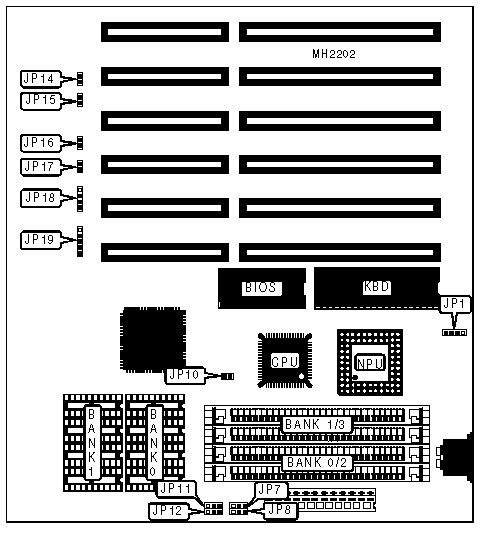

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP1	Turbo switch	JP17
Reset switch	JP15	Speaker	JP18
Turbo LED	JP16	Power LED & keylock	JP19

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP1	pins 2 & 3 closed
	CMOS memory clear	JP1	pins 3 & 4 closed
	External battery installed	JP1	Closed
»	Parity check disabled	JP10	Closed
	Parity check enabled	JP10	Open
»	Monitor type select monochrome	JP14	Closed
	Monitor type select color	JP14	Open

DRAM CONFIGURATION (DIP ONLY INSTALLED)
Size	Bank 0	Bank 1
512KB	(4) 44256	NONE
1MB	(4) 44256	(4) 44256
2MB	(4) 441000	NONE
4MB	(4) 441000	(4) 441000

DRAM CONFIGURATION (SIMM ONLY INSTALLED)
Size	Bank 0	Bank 1
512KB	(2) 256K x 9	NONE
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE
16MB	(2) 4M x 9	(2) 4M x 9

DRAM CONFIGURATION (DIP & SIMM INSTALLED)
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(4) 44256	(4) 44256	(2) 256K x 9	(2) 256K x 9
8MB	(4) 441000	(4) 441000	(2) 1M x 9	(2) 1M x 9

DRAM JUMPER CONFIGURATION
Type	JP7	JP8	JP11	JP12
DIP only	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed
SIMM only	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
DIP & SIMM	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed
